2.1 mm, F1.1 LWIR Thermal Lens (LS-SWL-0191)
Model LS-SWL-0191
- Focal length2.1 mm
- MountM16
- ApertureF1.1
- TypeThermal (LWIR)
$179.00
Ships in 2-3 weeks
0.11 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2.1 mm, F1.1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 2.1 mm; sensor 80X60 35um; aperture F1.1; mount M16x0.5; distortion 21.8%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0191 |
|---|---|
| Angle of view (deg) | 72.28(H)x53.46(V) |
| Front lens coating | HD |
Optics
| Focal length | 2.1 mm |
|---|---|
| Aperture | F1.1 |
| Distortion | 21.8% |
| Focus range | 0.1m~∞ |
| Mechanical back focal length | 5.1 mm |
| Focus method | Fixed |
Sensor and imaging
| Sensor | 80X60 35um |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M16x0.5 |
|---|---|

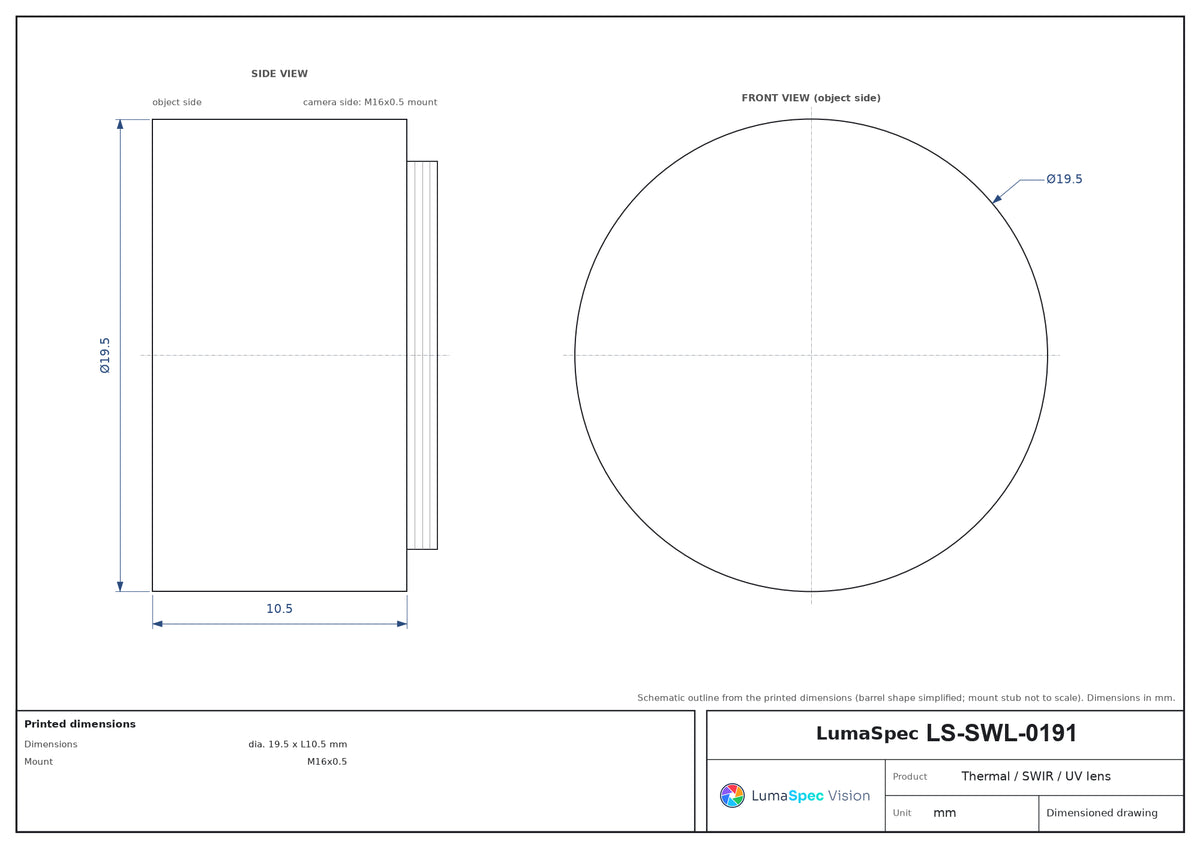

| Dimensions | dia. 19.5 x L10.5 mm |
| Weight | <7g |
| Shipping weight (estimated) | 0.11 kg |
Photo shows a representative model of this series; see the specifications for this model.
