5 mm, F1.2 LWIR Thermal Lens (LS-SWL-0159)
Model LS-SWL-0159
- Focal length5 mm
- MountM20x0.75
- Sensor1/5.6"
- ApertureF1.2
$219.00
Ships in 2-3 weeks
0.11 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5 mm, F1.2 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 5 mm; sensor 160x120 17um; aperture F1.2; mount M20x0.75; distortion 4.40%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0159 |
|---|---|
| Angle of view (deg) | 39.1(D)x31.17(H)x23.34(V) |
| Front lens coating | HD |
Optics
| Focal length | 5 mm |
|---|---|
| Aperture | F1.2 |
| Distortion | 4.40% |
| Relative illumination | 0.89 |
| Focus range | 0.3m~∞ |
| Mechanical back focal length | 7.22 mm |
| Focus method | Fixed |
| Image circle (derived) | dia. 3.4 mm, from the 160 x 120 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 160x120 17um |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M20x0.75 |
|---|---|

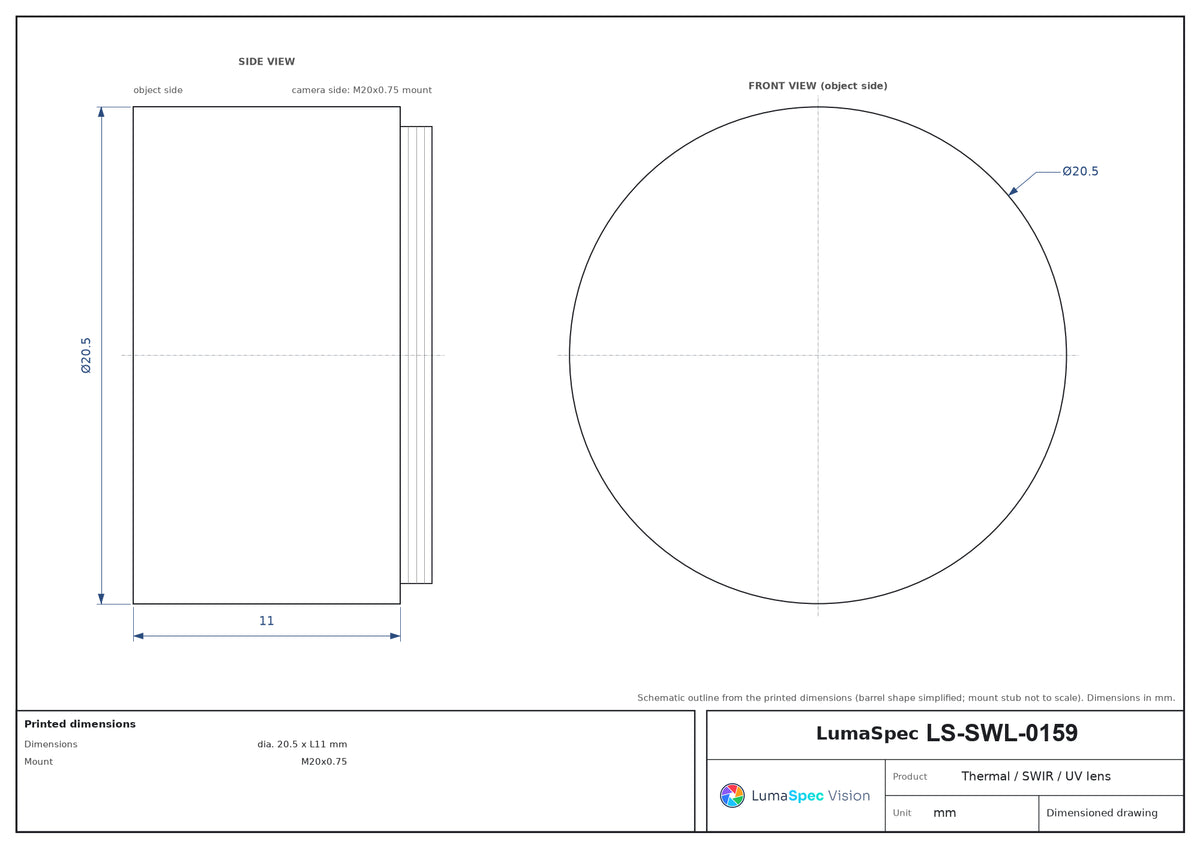

| Dimensions | dia. 20.5 x L11 mm |
| Weight | <7.5g |
| Shipping weight (estimated) | 0.11 kg |
Photo shows a representative model of this series; see the specifications for this model.
