2 mm, F1.3 LWIR Thermal Lens (LS-SWL-0132)
Model LS-SWL-0132
- Focal length2 mm
- MountM7x0.25
- Sensor1/5.6"
- ApertureF1.3
$179.00
Ships in 2-3 weeks
0.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2 mm, F1.3 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 2 mm; sensor 160×120 12μm; aperture F1.3; mount M7×0.25; distortion -14.50%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0132 |
|---|---|
| Angle of view (deg) | 72.36°(D)×57.36°(H)×43°(V) |
| Sealing | Front IP 67 |
| Front lens coating | Diamond-like carbon film |
Optics
| Focal length | 2 mm |
|---|---|
| Aperture | F1.3 |
| Distortion | -14.50% |
| Relative illumination | 0.7 |
| Focus method | Fixed |
| Focus range | 0.2m~∞ |
| Mechanical back focal length | 1.4 mm |
| Image circle (derived) | dia. 2.4 mm, from the 160 x 120 detector at 12 micron pitch |
Sensor and imaging
| Sensor | 160×120 12μm |
|---|
Environment and compliance
| Operating temperature | -20℃ to +60℃ |
|---|
Mechanical
| Mount | M7×0.25 |
|---|---|

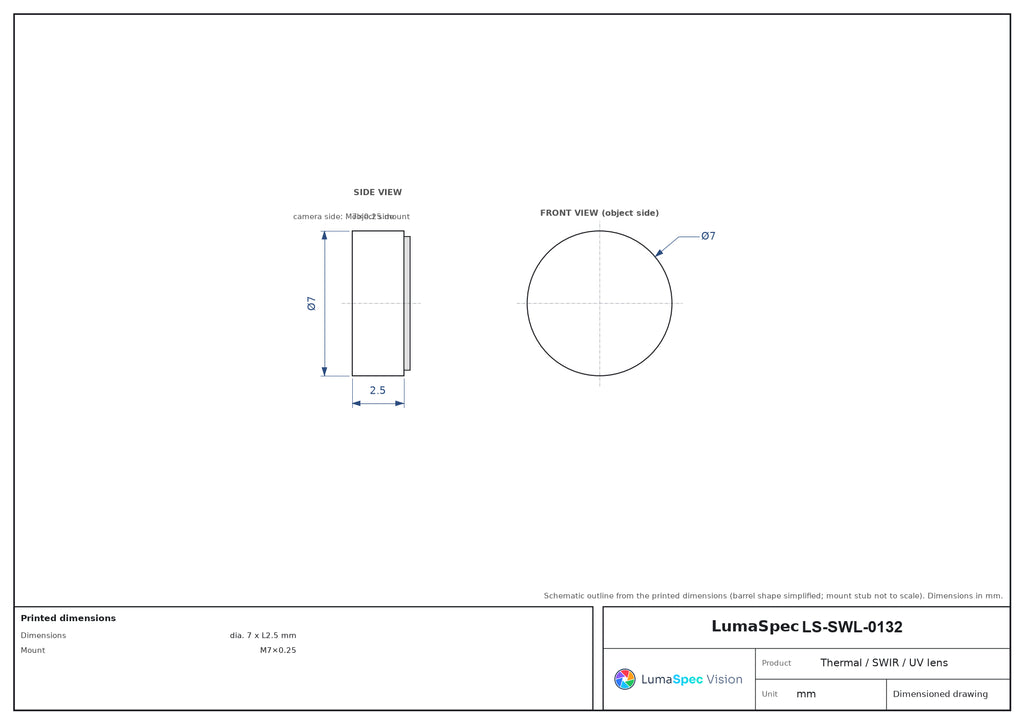

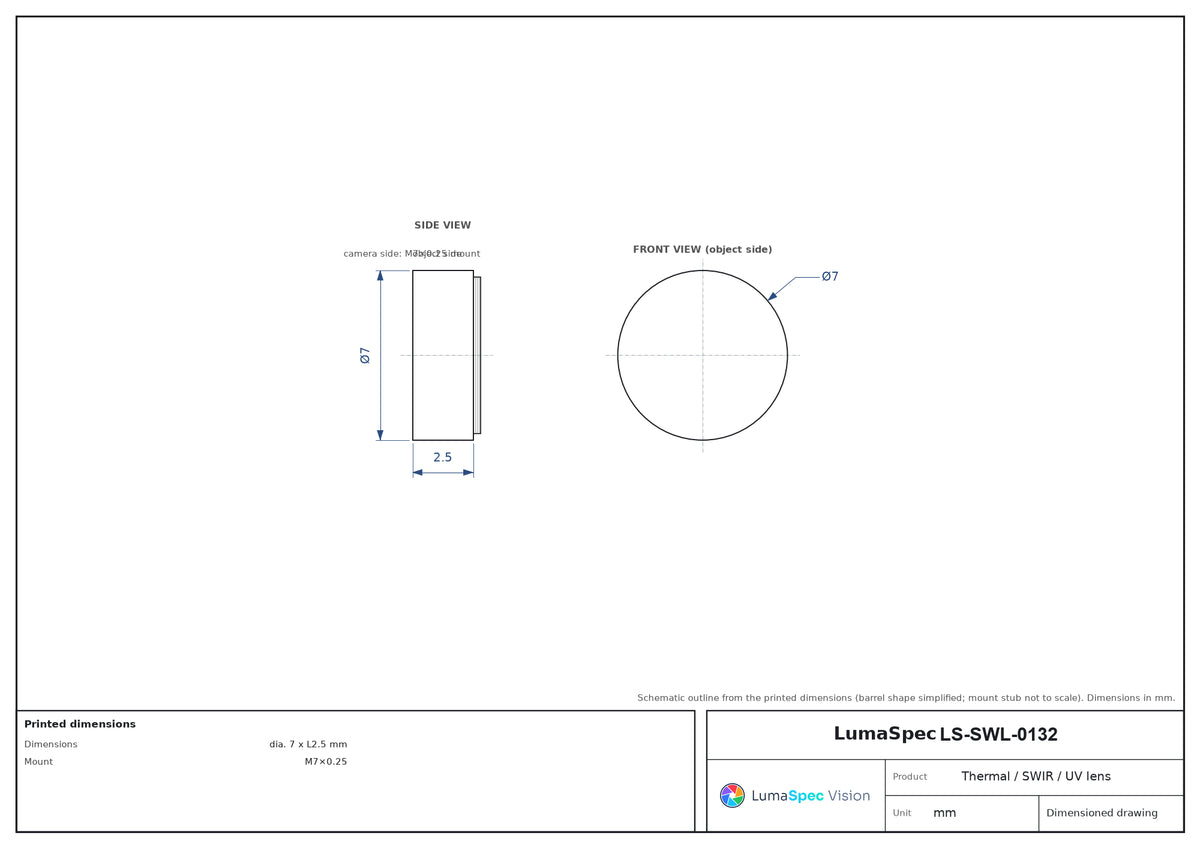

| Dimensions | dia. 7 x L2.5 mm |
| Weight | <1.2g |
| Shipping weight (estimated) | 0.10 kg |
Photo shows a representative model of this series; see the specifications for this model.
