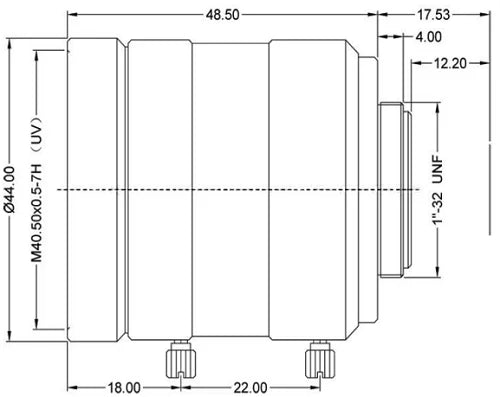

  • LS-SWIR3514-5MS dimensions (mm)

Thermal, SWIR & UV lenses

35 mm, 2/3", 5 MP, C-mount SWIR Lens (LS-SWIR3514-5MS)

Model LS-SWIR3514-5MS

  • Focal length35 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF1.4-16 Manual Iris
  • Resolution5 Megapixel
$489.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.35 kg shipping weight

Volume pricing, Net 30 or a formal quote?

35 mm, 2/3", 5 MP, C-mount SWIR Lens. A short-wave infrared (SWIR) 35 mm, 2/3", 5 megapixel C-mount lens coated for 900-1700 nm, for electronic inspection, semiconductors, biometric imaging, colour sorting, food and pharmaceutical inspection, and imaging through fog. At a glance: focal length 35 mm; format 2/3"; resolution 5 Megapixel; aperture F1.4-16 Manual Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWIR3514-5MS
Format2/3"
Angle of view (2/3", HxV)15 x 11 deg
Angle of view (1/1.8", HxV)12 x 9 deg
Angle of view (1/2", HxV)11 x 8 deg
Construction8G

Optics

Focal length35 mm
ApertureF1.4-16 Manual Iris
M.O.D.0.25 m
Filter threadM40.5 x 0.5
Distortion<-0.05%
MTF (resolving power)100 lp/mm

Sensor and imaging

Resolution5 Megapixel

Light

Wavelength900~1700 nm

Electrical

Resolving power100 lp/mm

Mechanical

Sizedia. 44 x 48.5 mm
MountC
Weight178 g
Shipping weight (estimated)0.35 kg
