25 mm, 1.1", 20 MP, C-mount SWIR Lens (LS-S11WIR2528-20M)
Model LS-S11WIR2528-20M
- Focal length25 mm
- Magnification0.005x-0.221x
- MountC-mount
- Sensor1.1"
- ApertureF2.8 Manual Iris
- Resolution20 Megapixel
$449.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.43 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25 mm, 1.1", 20 MP, C-mount SWIR Lens. A 25 mm, 1.1" format, 20 megapixel SWIR machine vision lens (800-1700 nm) with <0.1% distortion and 0.005x-0.221x magnification, for automation and inspection. At a glance: magnification 0.005x-0.221x; focal length 25 mm; format 1.1"; resolution 20 Megapixel; aperture F2.8 Manual Iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S11WIR2528-20M |
|---|---|
| Format | 1.1" |
| Angle of view (1.1", DxHxV) | 38 x 30.4 x 23 deg |
| Angle of view (1", DxHxV) | 35 x 28 x 21 deg |
| Angle of view (2/3", DxHxV) | 24 x 19.2 x 15 deg |
| B.F.L. | 22.4 mm |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F2.8 Manual Iris |
| M.O.D. | 0.1 m |
| Distortion | <0.1% |
| Filter thread | M35.5 x P0.5 |
| Relative illumination | 45% |
| Magnification | 0.005x-0.221x |
Sensor and imaging
| Resolution | 20 Megapixel |
|---|
Light
| Wavelength | 800~1700 nm |
|---|
Mechanical

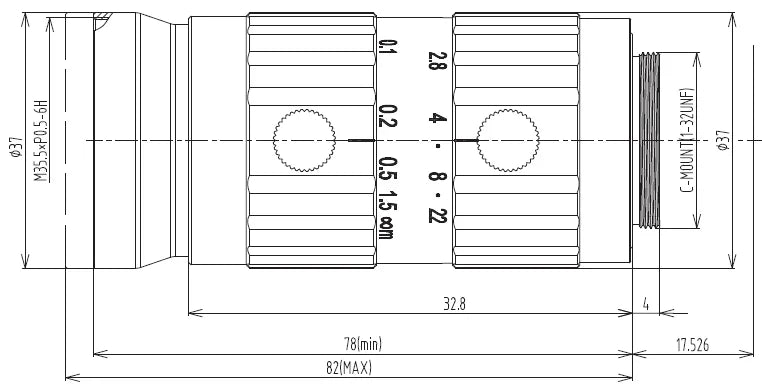

| Size | dia. 37 x 82 mm |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.43 kg |
