48 mm Square Flat Shadowless Light (LS-SQ-48)
Model LS-SQ-48
- ColourRed, Green, Blue, White
- Voltage24 V
- Power3.5 W
- Inner dia26x26 mm
$99.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
48 mm Square Flat Shadowless Light. Square shadowless light with high brightness and high uniformity, ideal for square-shaped objects. It lights the four-corner contours that a ring light struggles to reach and prevents reflective projections; the illumination area can be customized.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SQ-48 |
|---|---|
| Inner dia (mm) | 26x26 |
| L x W x H (mm) | 48x48x30 |
Interfaces and I/O
| Cable lead (mm, per drawings) | 500 |
|---|
Light
| Colours | Red, Green, Blue, White |
|---|
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 3 |
| Power W/B/G (W) | 3.5 |
Mechanical
| Shipping weight (estimated) | 0.20 kg |
|---|

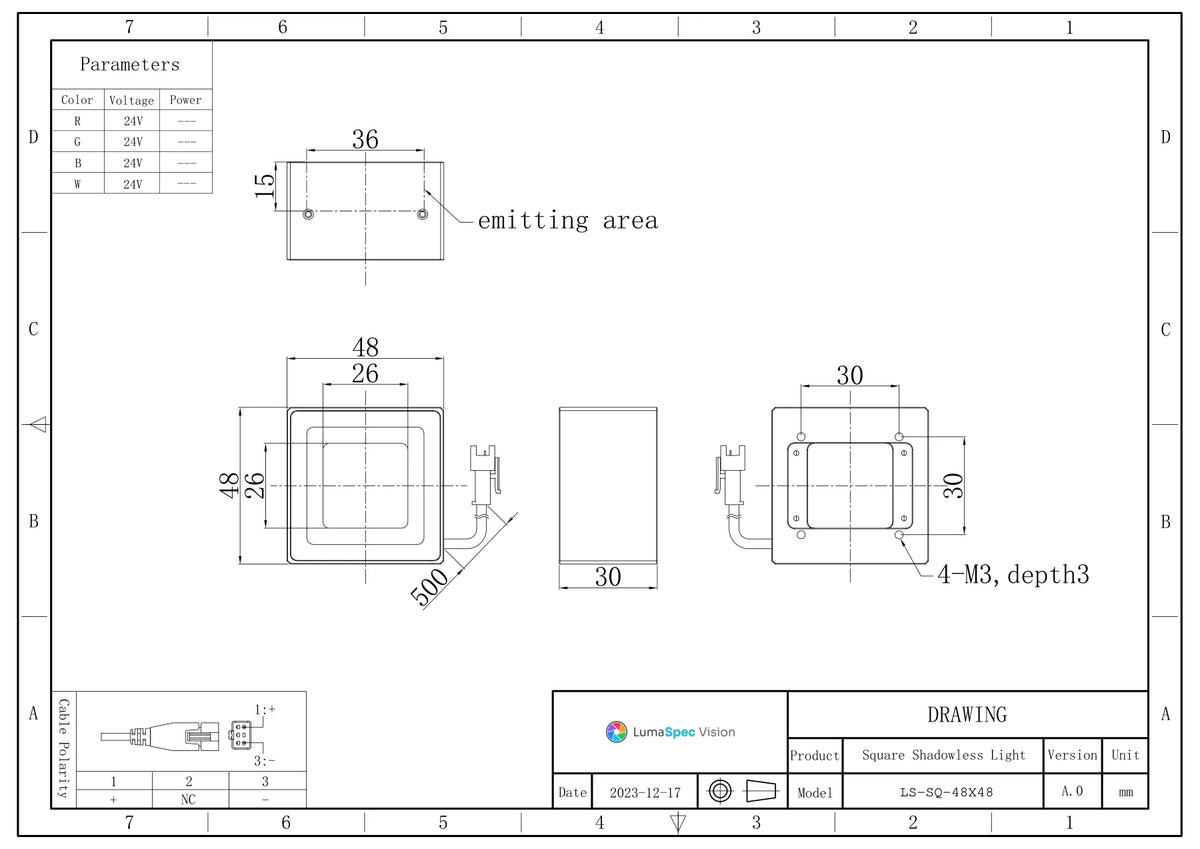

Mounting and drawing data
drawing: 4-M3 depth 3, 30 x 30 pattern
Other models in the Square shadowless light (SQ series) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|

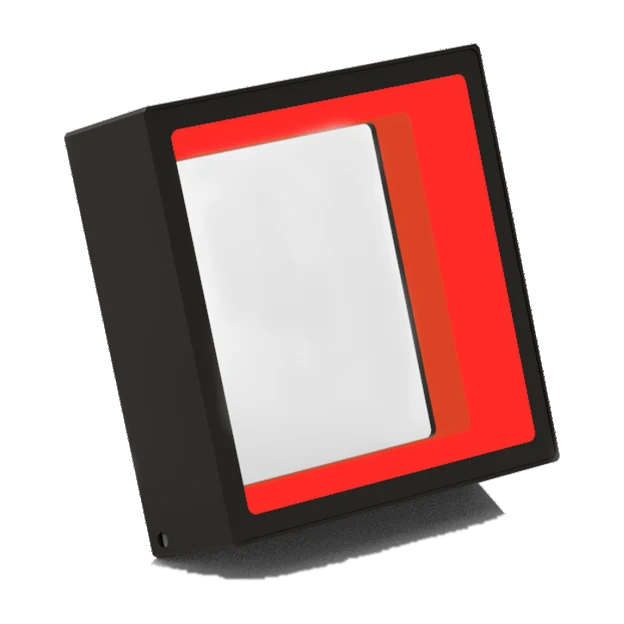

| LS-SQ-20 | 20 mm | $59.00 | 14 in stock | View |
