20 mm Square Flat Shadowless Light (LS-SQ-20)
  • 20 mm Square Flat Shadowless Light (LS-SQ-20)

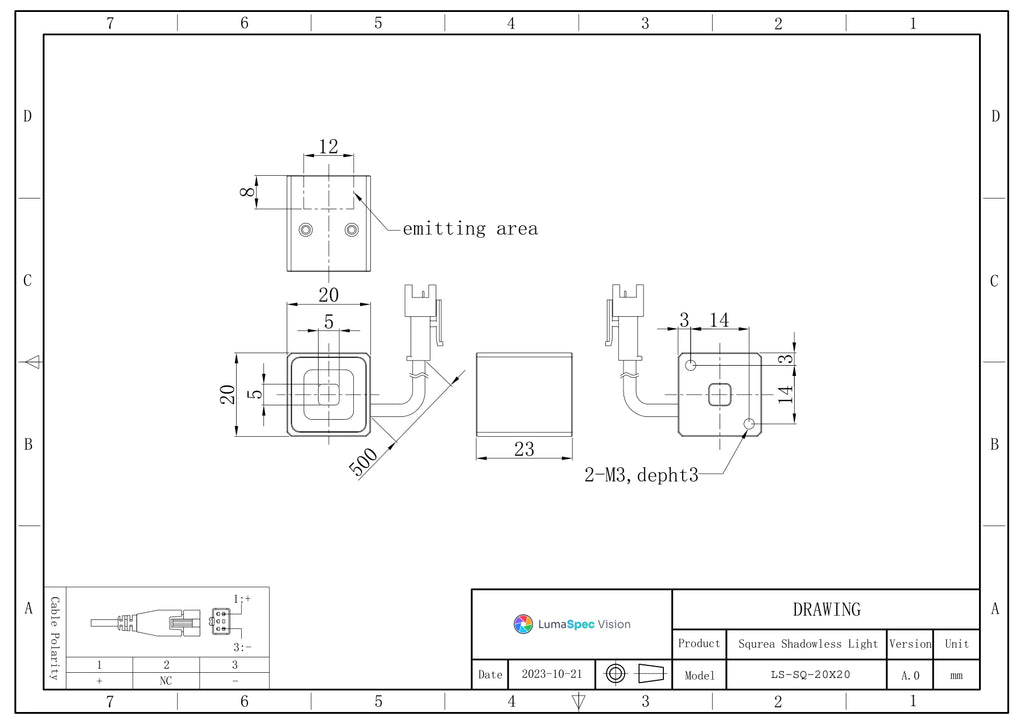

  • LS-SQ-20 dimensions (mm)

Shadowless lights

20 mm Square Flat Shadowless Light (LS-SQ-20)

Model LS-SQ-20

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power3 W
  • Inner dia5x5 mm
$59.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.2 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

20 mm Square Flat Shadowless Light. Square shadowless light with high brightness and high uniformity, ideal for square-shaped objects. It lights the four-corner contours that a ring light struggles to reach and prevents reflective projections; the illumination area can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SQ-20
Inner dia (mm)5x5
L x W x H (mm)20x20x23

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)2.5
Power W/B/G (W)3

Mechanical

Shipping weight (estimated)0.20 kg

Mounting and drawing data

drawing: 2-M3 depth 3
