50 mm Line Scan Lens (LS-SPH50)
  • 50 mm Line Scan Lens (LS-SPH50)

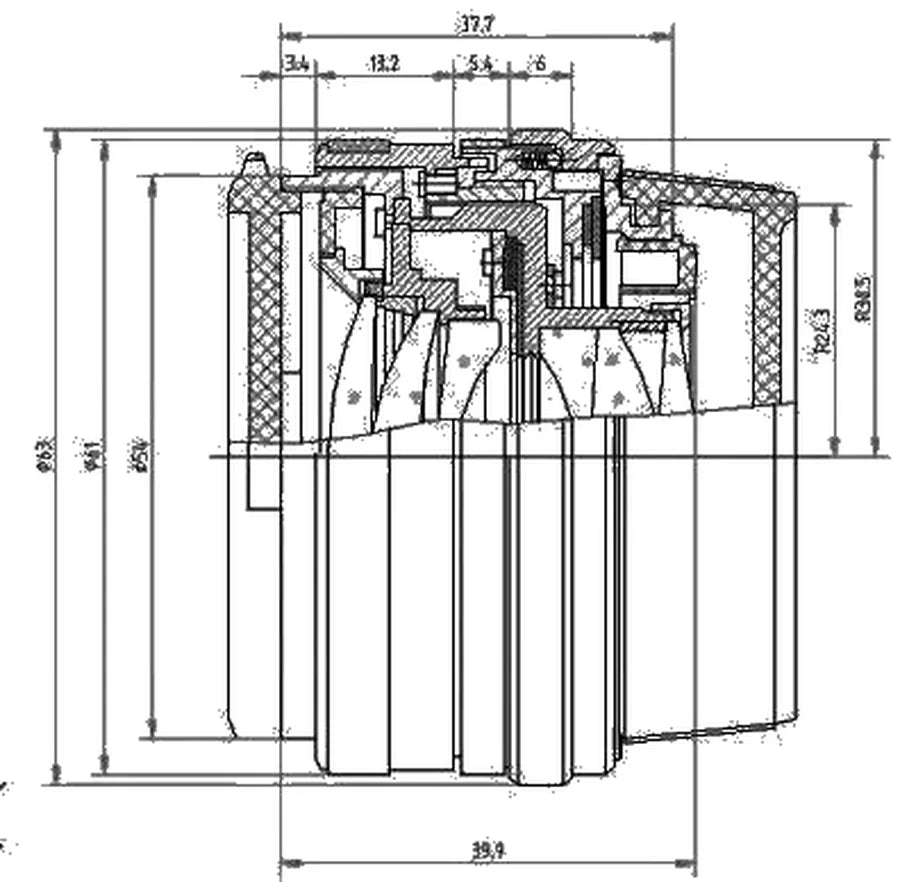

  • LS-SPH50 dimensions (mm)

Line scan lenses

50 mm Line Scan Lens (LS-SPH50)

Model LS-SPH50

  • Focal length50 mm
  • MountF-mount
  • ApertureF1.7 Manual Iris
  • Sizedia. 63 x 39.9 mm
$1,119.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.39 kg shipping weight

Volume pricing, Net 30 or a formal quote?

50 mm Line Scan Lens. 50 mm F1.7 manual-iris lens with M52 filter thread, F, M42 or PK mount option. At a glance: focal length 50 mm; aperture F1.7 Manual Iris; mount F/M42/PK Option; size dia. 63 x 39.9 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SPH50

Optics

Focal length50 mm
ApertureF1.7 Manual Iris
Filter threadM52 x P0.75-7H

Mechanical

Sizedia. 63 x 39.9 mm
MountF/M42/PK Option
Weight210 g
Shipping weight (estimated)0.39 kg
