Line scan lenses
25 mm, 0.03x, M42-mount Line Scan Lens (LS-SLS2502)
Model LS-SLS2502
- Focal length25 mm
- Magnification0.03X
- MountM42
- SensorAPS-H
- Resolution4K7μ
$1,409.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25 mm, 0.03x, M42-mount Line Scan Lens. Low-magnification line scan lenses for 4K, 8K and 12K line scan cameras (3.5 um, 5 um and 7 um pixels), suited to inspecting large objects. Standard V mount, with M42 / M58 / M72 / F mounts optional. At a glance: magnification 0.03X; focal length 25 mm; resolution 4K7μ; mount M42; datasheet distortion 0.6% / 0.5% / 0.1% / 0.5%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SLS2502 |
|---|---|
| EFL | 25 mm |
| Max image | 32 mm |
| Image quality | axis 125 lp/mm, dia. 21 100 lp/mm, dia. 30 100 lp/mm |
Optics
| Focal length | 25 mm |
|---|---|
| Magnification | 0.03X |
| Magnification / W.D. (mm) / FOV (mm) | 0.03X: 850, 992; 0.05X: 500, 588; 0.121X: 200, 249; 0.2X: 115, 150 |
| F/# | 2.8-16 |
| Distortion | 0.6% / 0.5% / 0.1% / 0.5% |
| Flange focal distance | 12 mm |
Sensor and imaging
| Resolution | 4K7μ |
|---|
Mechanical
| Mount | M42 |
|---|---|
| Size | dia. 53 x 63.4 mm |
| Filter size | M49 x P0.75 |
| Shipping weight (estimated) | 0.94 kg |

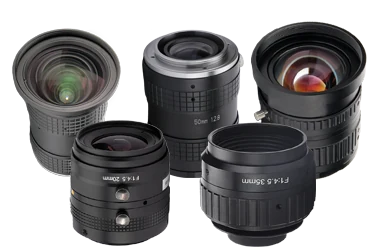

Photo shows lenses of this series; see the specifications and drawing for this model.
