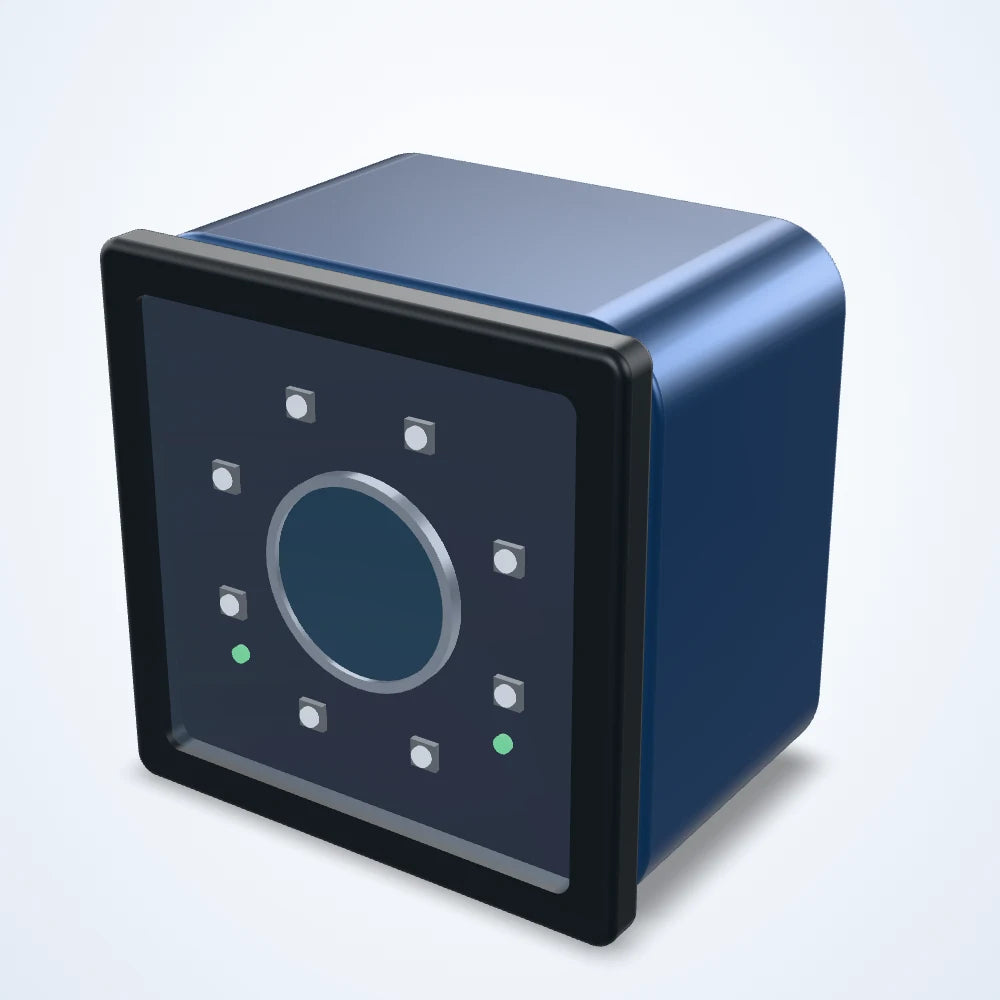

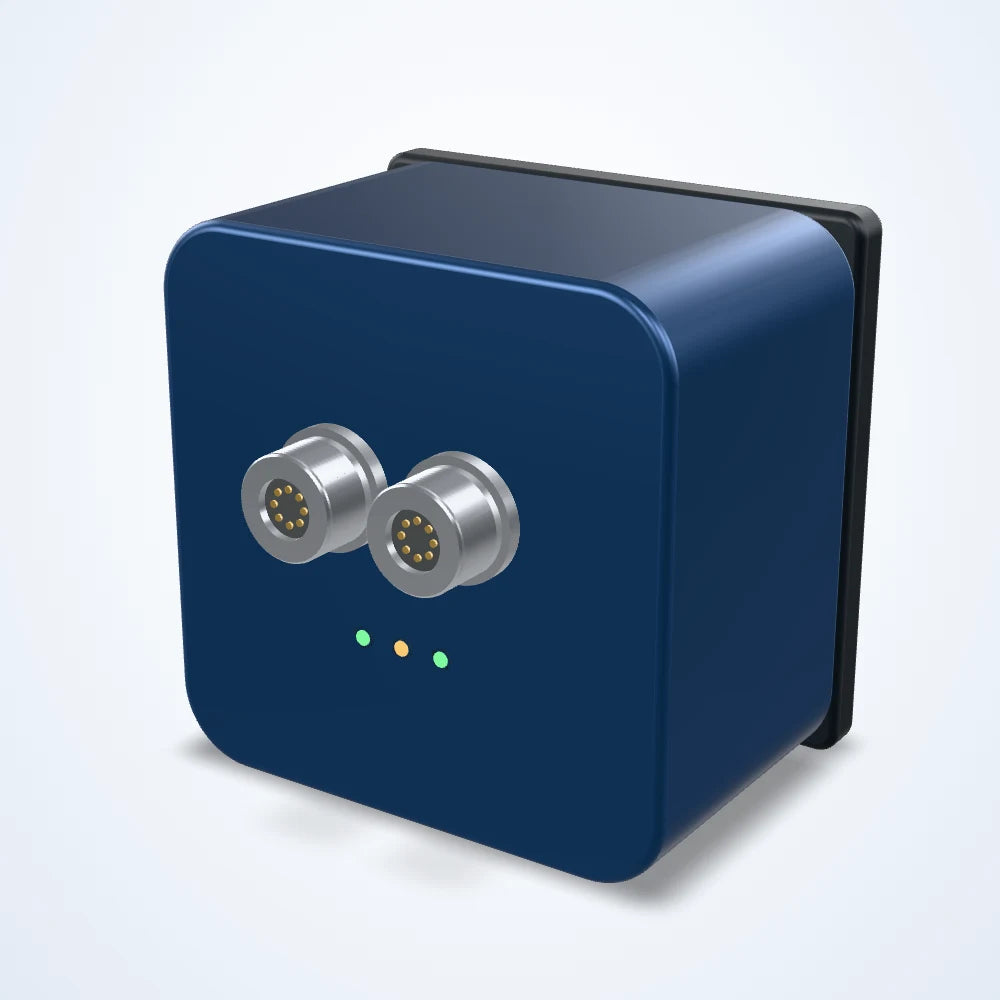

Lens white light (polarized transparent light) (series view)
  • Lens white light (polarized transparent light) (series view)
  • Lens white light (polarized transparent light) (series view)
  • 1.6 MP smart camera, 60 fps, 25 mm lens, white light (polarized, transparent light)

Rendered illustration: the actual product may differ in appearance.

Smart cameras & vision sensors

1.6 MP smart camera, 60 fps, 25 mm lens, white light (polarized, transparent light) (LS-SMC-0065)

Model LS-SMC-0065

  • Resolution1440x1080
  • InterfaceGigE
  • Speed60
  • Focal length25 mm
$1,110.00

Ships in 3-4 weeks

0.5 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.6 MP smart camera, 60 fps, 25 mm lens, white light (polarized, transparent light) (LS-SMC-0065)LS-SMC-0065

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.6 MP smart camera for inspection, reading and counting on the device, without a PC. 1440 x 1080 pixels; up to 60 frames per second; GigE interface; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SMC-0065
Deep learning toolsAI Classification
Counting toolsSpot Count
Presence toolsLine Existence, Circle Existence, Spot Existence
Measurement toolsGreyscale Size, Contrast Measurement, Brightness Measurement, Width Measurement
Recognition tools1D Barcode, QR Code, OCR, Color Recognition (Color models only)
Location toolsPattern Matching
Logic toolsLogic Judge, Condition Judge, Calculator, Character Comparison
Inspection toolsContour Comparison
Vision Tools● Location: PatternMatch ● AI: AI classification ● Exist: FindLine, FindCircle, BlobExist ● Count: BlobCount ● Measure: Grayscale area , Contrast, Brightness, EdgeWidthTool ● Detection: ContourCompare ● Recognition: DataCode, BarCode, OCR ● Logic: LogicCheck, ConditionCheck, Mathematical, StringComparison
Solution CapacitySupports project import/export with a maximum storage capacity of 32 projects.
Built-in lightWhite, 2-channel polarized and 2-channel transparent light

Optics

Lens focal length25 mm
Working distance250-1500 mm
Field of view46.5*34.9-295.7*221.8 mm

Sensor and imaging

Resolution1440x1080
Max. frame rate60

Interfaces and I/O

Data interfaceGigE
Communication ProtocolsTCP Client, TCP Server, UDP, FTP, RS232, Profinet, Modbus TCP, EtherNet/IP
Digital I/ORS232, 2 Opto-isolated inputs, 3 Opto-isolated outputs

Light

Color TypeMono

Environment and compliance

Ingress protectionIP65
Operating temperature-20 °C~+50 °C(Operating)-30 °C~+70 °C(Storage)
Humidity20%-95%, no condensation

Electrical

Power supplyDC9-26 V 2A
Power consumption<18 W

Mechanical

Lens mountAutofocus

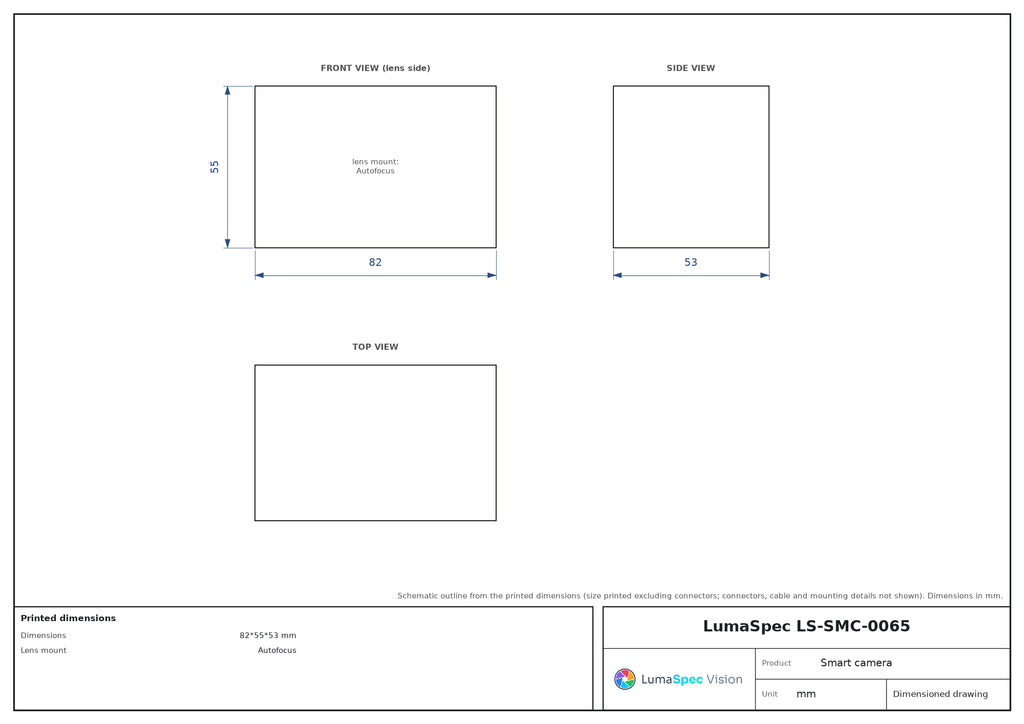

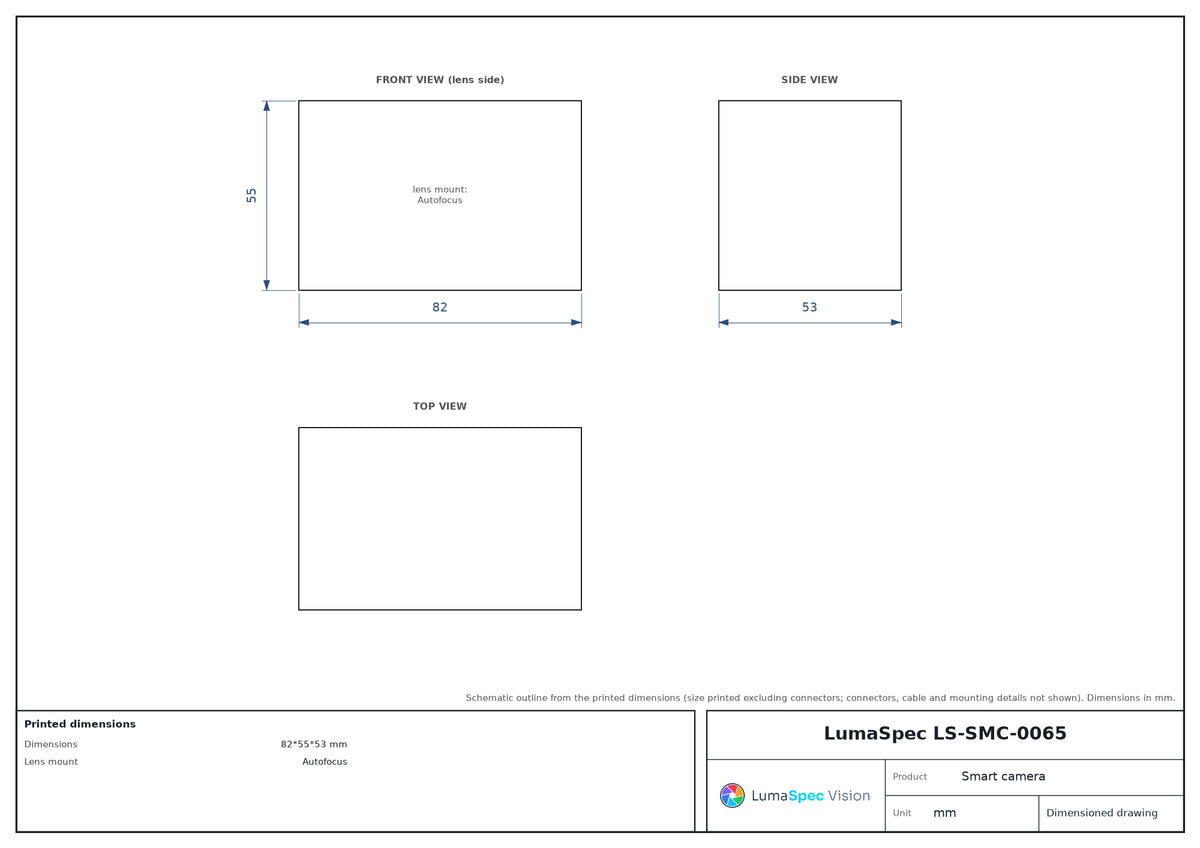

Dimensions82*55*53(excluding connectors) mm
Weight<350g
