  • 1.6 MP smart camera, 60 fps, 7 mm lens, white light (polarized)

Rendered illustration: the actual product may differ in appearance.

Smart cameras & vision sensors

1.6 MP smart camera, 60 fps, 7 mm lens, white light (polarized) (LS-SMC-0055)

Model LS-SMC-0055

  • Resolution1440 x 1080
  • InterfaceFast Ethernet
  • Speed60
  • Focal length7 mm
$675.00

Ships in 3-4 weeks

0.5 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.6 MP smart camera, 60 fps, 7 mm lens, white light (polarized) (LS-SMC-0055)LS-SMC-0055

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.6 MP smart camera for inspection, reading and counting on the device, without a PC. 1440 x 1080 pixels; up to 60 frames per second; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SMC-0055
Vision Tools● Location: PatternMatch ● AI: AI classification ● Exist: FindLine, FindCircle, BlobExist ● Count: BlobCount ● Measure: Grayscale area , Contrast, Brightness, EdgeWidthTool ● Detection: ContourCompare ● Recognition: DataCode, BarCode, OCR ● Logic: LogicCheck, ConditionCheck, Mathematical, StringComparison
Solution CapacitySupports project import/export with a maximum storage capacity of 32 projects.
Built-in lightWhite polarized

Optics

Lens focal length7 mm
Working distance40-150 mm
Field of view30.4*22.8-111.8*83.8 mm

Sensor and imaging

Resolution1440 x 1080
Max. frame rate60

Interfaces and I/O

Communication ProtocolsTCP Client, TCP Server, UDP, FTP, RS232, Profinet, Modbus TCP, EtherNet/IP
Data interfaceFast Ethernet
Digital I/ORS232, 1 Opto-isolated input, 1 Opto-isolated output,1 configurable input and output

Light

Color TypeMono

Environment and compliance

Ingress protectionIP65
Operating temperature-20 °C~+50 °C(Operating)-30 °C~+70 °C(Storage)
Humidity20%-95%, no condensation

Electrical

Power supplyDC9-26 V 1A
Power consumption<3.5 W

Mechanical

Lens mountAutofocus

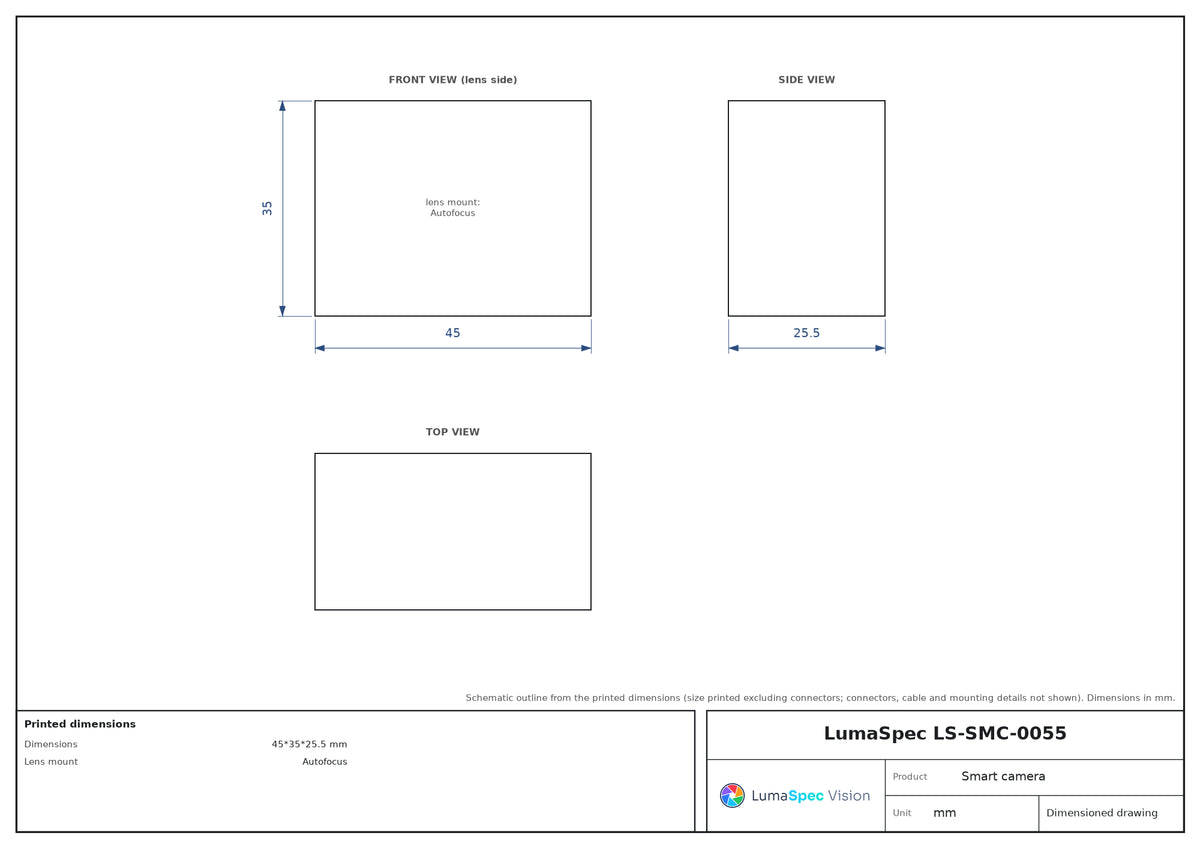

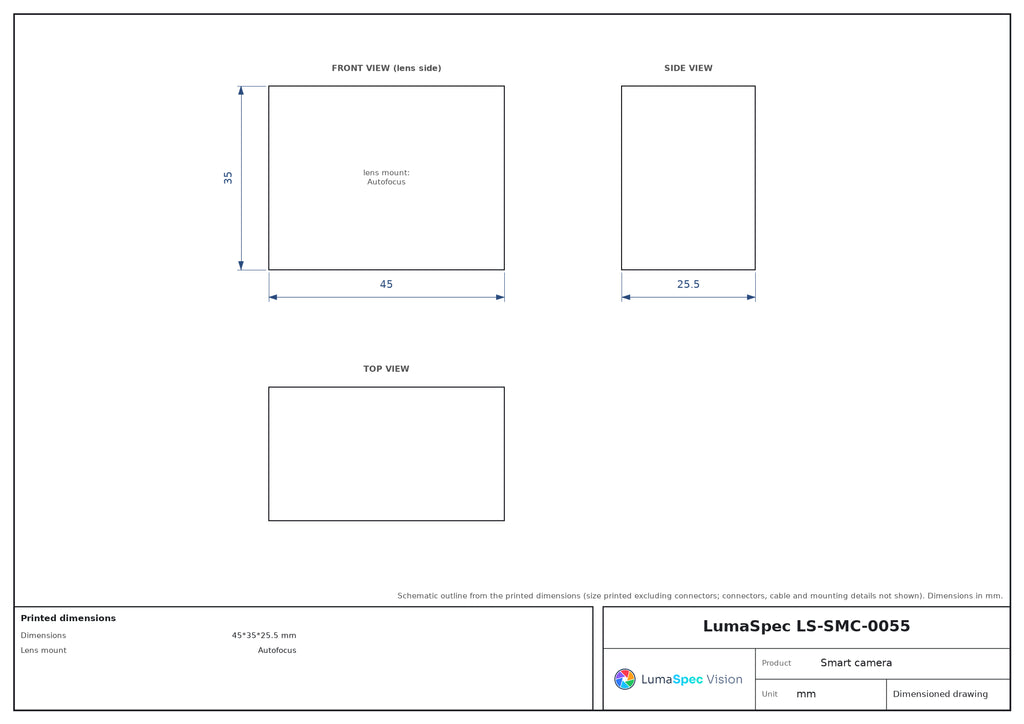

Dimensions45*35*25.5(excluding connectors) mm
Weight<140g
