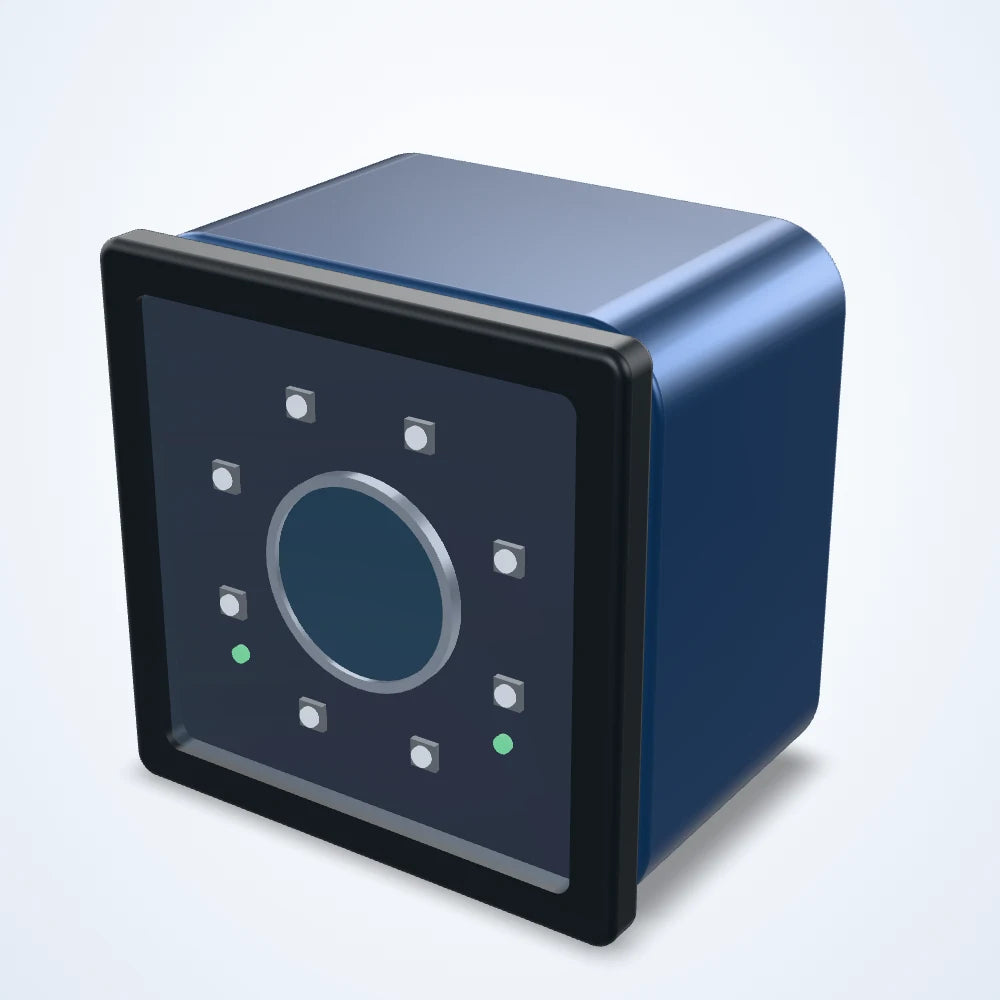

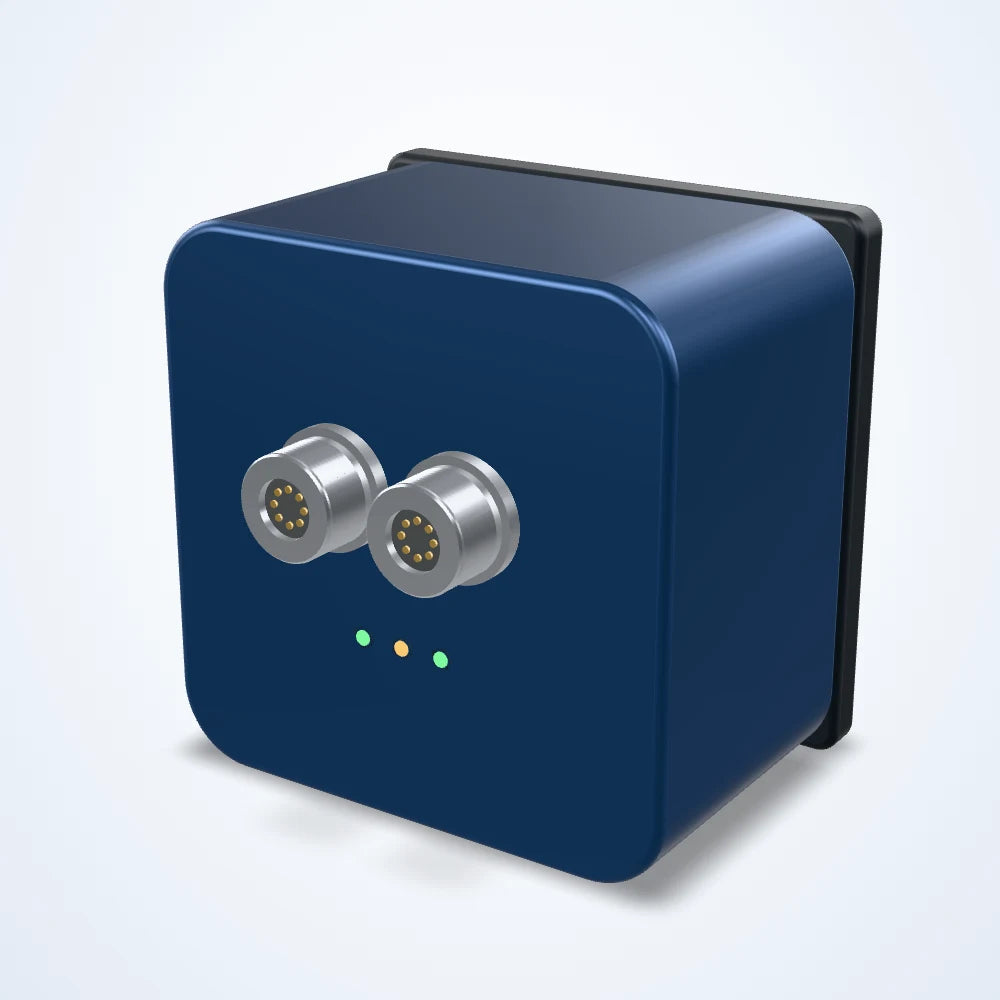

Smart camera (series view)
  • Smart camera (series view)
  • Smart camera (series view)

Rendered illustration: the actual product may differ in appearance.

Smart cameras & vision sensors

4.2 MP smart camera, 30 fps, 12.4 mm lens (LS-SMC-0072)

Model LS-SMC-0072

  • Resolution2368 x 1760
  • Speed30 fps
  • Focal length12.4 mm
  • ColourMono, Color
$1,330.00

Ships in 3-4 weeks

3.0 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4.2 MP smart camera, 30 fps, 12.4 mm lens (LS-SMC-0072)LS-SMC-0072

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4.2 MP smart camera for inspection, reading and counting on the device, without a PC. 2368 x 1760 pixels; up to 30 frames per second; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SMC-0072
Deep learning toolssupported
Counting toolsPattern count, Edge count, Spot count, Contour count(LS-SDL-S04 Series), color count(Color Only)
Presence toolsCircle existence, Line existence, Spot existence, Edge existence, Pattern existence
Measurement toolsL2L angle, Diameter measurement, Brightness average value, Contrast measurement,Width measurement, P2L measurement, Greyscale size, Line angle, Edge width measurement, Color size(Color Only)
Recognition toolsOCR, Classification registration,Code recognition, Object detection registration, Color
Location toolsMatch calibration, match location, position fixture
Logic toolsCondition judge, Logic judge, Calculator, Character comparison;If module, combination judge, string comparison
Defect detection toolsException detection

Optics

Lens focal length12.4 mm

Sensor and imaging

Max. frame rate30 fps
Resolution2368 x 1760

Mechanical

Shipping weight3.00 kg
