10.7 mm, F1 LWIR Thermal Lens (LS-SLWIRD6)
Model LS-SLWIRD6
- Focal length10.7 mm
- MountM34x0.5
- Sensor1.1"
- ApertureF1
$189.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
10.7 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 10.7 mm; sensor 1920×1080 8μm; aperture F1; mount M34×0.5; distortion -19.9%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SLWIRD6 |
|---|---|
| Angle of view (deg) | 91.1°(D)×80°(H)×45.7×°(V) |
| Sealing | Front IP 67 |
| Front lens coating | DLC |
Optics
| Focal length | 10.7 mm |
|---|---|
| Aperture | F1 |
| Distortion | -19.9% |
| Relative illumination | 0.85 |
| Focus method | Fixed |
| Focus range | 0.5m~∞ |
| Mechanical back focal length | 9 mm |
| Image circle (derived) | dia. 17.6 mm, from the 1920 x 1080 detector at 8 micron pitch |
Sensor and imaging
| Sensor | 1920×1080 8μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M34×0.5 |
|---|---|

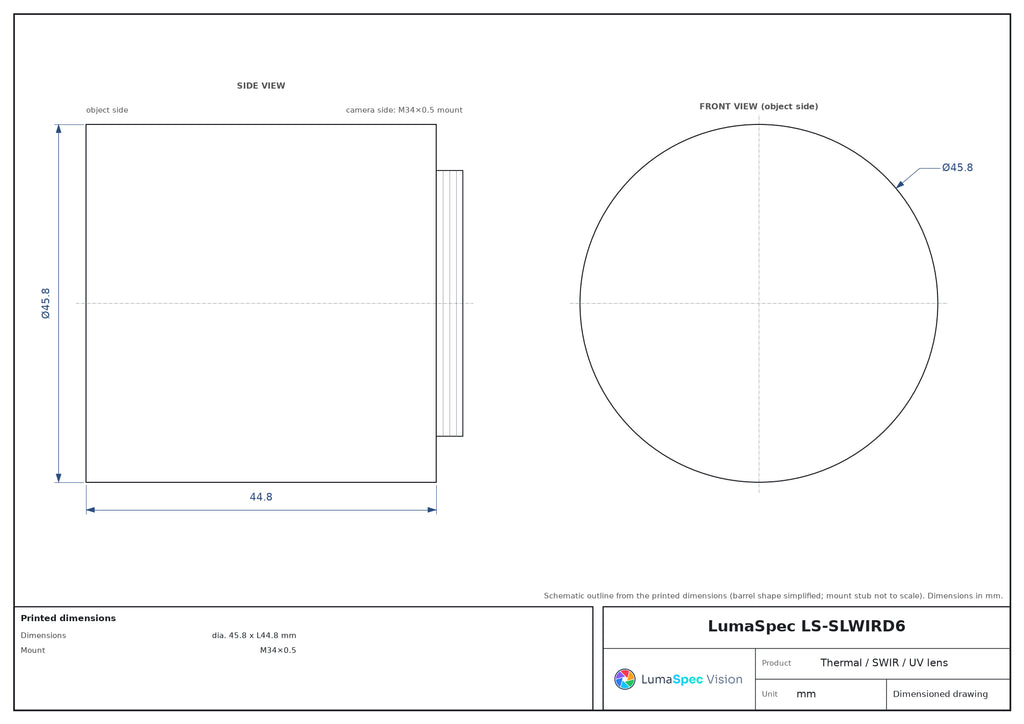

| Dimensions | dia. 45.8 x L44.8 mm |
| Weight | 109.2g |
| Shipping weight (estimated) | 0.25 kg |
Photo shows a representative model of this series; see the specifications for this model.
