13 mm, F1.2 LWIR Thermal Lens, BFL 7.5 mm (LS-SLWIRD2)
Model LS-SLWIRD2
- Focal length13 mm
- MountM17x0.5
- Sensor1/1.7"
- ApertureF1.2
$209.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.11 kg shipping weight
Volume pricing, Net 30 or a formal quote?
13 mm, F1.2 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 13 mm; sensor 640×512 12μm; aperture F1.2; mount M17×0.5; distortion -5%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SLWIRD2 |
|---|---|
| Angle of view (deg) | 43.4°(D)×33.9°(H)×26.5°(V) |
| Sealing | Front IP 67 |
| Front lens coating | DLC |
Optics
| Focal length | 13 mm |
|---|---|
| Aperture | F1.2 |
| Distortion | -5% |
| Relative illumination | 0.9 |
| Focus method | Fixed |
| Focus range | 0.5m~∞ |
| Mechanical back focal length | 7.5 mm |
| Image circle (derived) | dia. 9.8 mm, from the 640 x 512 detector at 12 micron pitch |
Sensor and imaging
| Sensor | 640×512 12μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M17×0.5 |
|---|---|

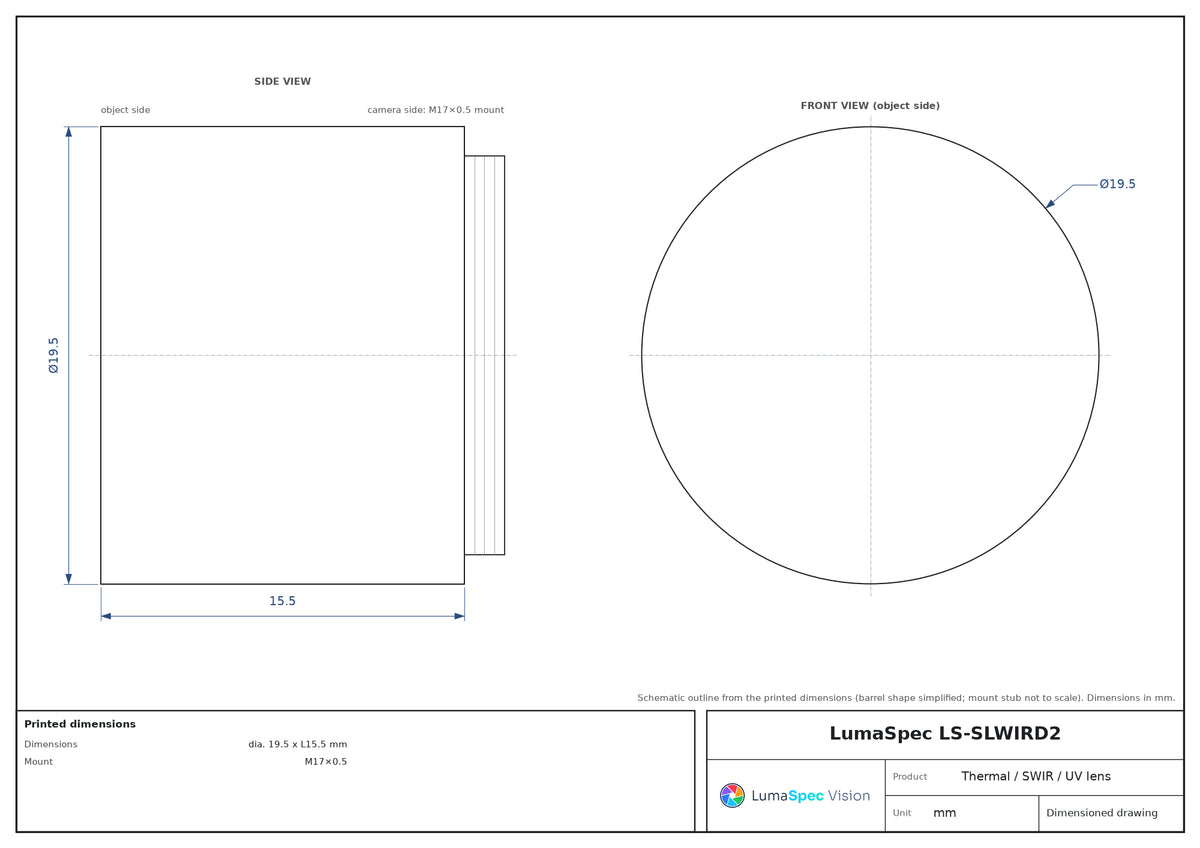

| Dimensions | dia. 19.5 x L15.5 mm |
| Weight | <7.6g |
| Shipping weight (estimated) | 0.11 kg |
Photo shows a representative model of this series; see the specifications for this model.
