90 mm, 0.42x, 150 MP, M72-mount Line Scan Lens (LS-SLS9015M72-150M)
Model LS-SLS9015M72-150M
- Focal length90 mm ±5%
- Magnification0.42x-0.07x
- MountM72
- SensorLarge format
- ApertureF4.8-22
- Resolution150 Megapixel
$3,389.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 or a formal quote?
90 mm, 0.42x, 150 MP, M72-mount Line Scan Lens. A manual-focus 90 mm line scan lens with a focus lock screw for 150 megapixel / 3.76 um sensors, 67 mm image circle, 0.42x-0.07x magnification and <0.1% distortion, for LED display, watch screen and mobile phone screen inspection. At a glance: magnification 0.42x-0.07x; focal length 90 mm ±5%; resolution 150 Megapixel; aperture F4.8-22; mount M72 x P0.75.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SLS9015M72-150M |
|---|---|
| Angle of view (D) | 37.6 deg |
Optics
| Focal length | 90 mm ±5% |
|---|---|
| Image circle | dia. 67 mm |
| Aperture | F4.8-22 |
| Magnification | 0.42x-0.07x |
| Working distance vs magnification | 0.42X: 267.1 mm; 0.3X: 353.9 mm; 0.2X: 505.7 mm; 0.15X: 657.5 mm; 0.07X: 1351.5 mm |
| TV distortion | <0.1% |
| Focus | Manual, with focus lock screw |
Sensor and imaging
| Pixel size | 3.76 um |
|---|---|
| Resolution | 150 Megapixel |

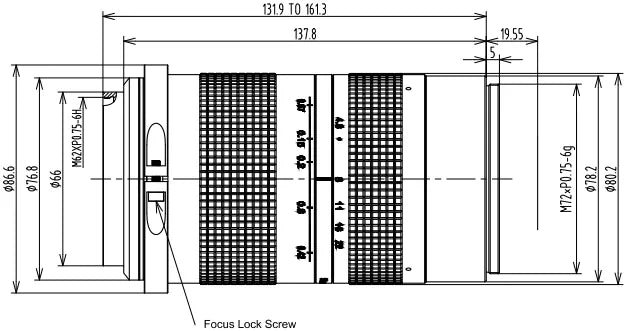

Mechanical
| Entrance pupil diameter | dia. 18.25 mm |
|---|---|
| Size | dia. 86.6 x 161.3 mm |
| Mount | M72 x P0.75 |
| Front thread | M62 x P0.75 |
| Shipping weight (estimated) | 0.94 kg |
