50 mm, 100 MP, F-mount Line Scan Lens (LS-SLS5028F-100M)
  • 50 mm, 100 MP, F-mount Line Scan Lens (LS-SLS5028F-100M)

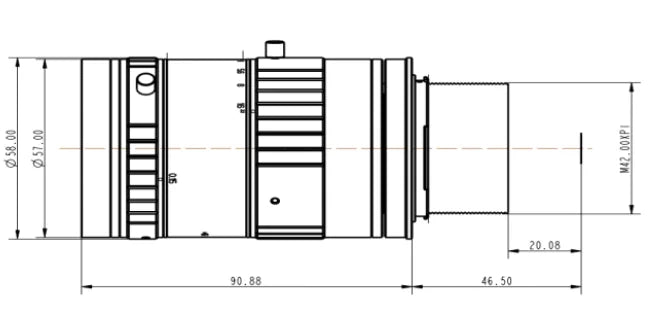

  • LS-SLS5028F-100M dimensions (mm)

Line scan lenses

50 mm, 100 MP, F-mount Line Scan Lens (LS-SLS5028F-100M)

Model LS-SLS5028F-100M

  • Focal length50 mm
  • MountF-mount
  • SensorLarge format
  • Working distance150 mm to infinity
  • ApertureF2.8~22 Manual iris
  • Resolution100Megapixel ( Pixel size 3.1 μm )
$2,369.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.89 kg shipping weight

Volume pricing, Net 30 or a formal quote?

50 mm, 100 MP, F-mount Line Scan Lens. 100 megapixel (3.1 μm pixel) 50 mm lens for dia. 46 mm full-size line-scan and area cameras, magnification 0.05x to 0.35x, TV distortion -0.44%. At a glance: working distance 150 mm to infinity; focal length 50 mm; format dia. 46 mm (Full size); resolution 100Megapixel ( Pixel size 3.1 μm ); aperture F2.8~22 Manual iris.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SLS5028F-100M
Formatdia. 46 mm (Full size)
Notes0.05x~0.35x
Angle of view (dia. 46 mm, DxHxV)45 x 38 x 26 deg
FOV (unit not printed; angle of view)45 x 38 x 26

Optics

Focal length50 mm
ApertureF2.8~22 Manual iris
Distortion-0.44% ; -0.35% @ 200~400 mm MOD
FOV at M.O.D.-106.56 x -70.9258 mm
M.O.D.0.15 m
Filter threadM40.5 x 0.5
Distortion (TV)-0.44% ; -0.35% @ 200~400 mm MOD
FOV at M.O.D. (as printed, unit not stated)106
Max image circledia. 46 mm (3.1 um pixel)
Working distance150 mm to infinity

Sensor and imaging

Resolution100Megapixel ( Pixel size 3.1 μm )
Sensor class3.1 um pixel, 100 MP

Environment and compliance

Operating temperature-10~50°C

Mechanical

Sizedia. 58 x 90.88 mm
Weight566 g
MountF
Optical total length137.3 mm
Mount optionsM42, M58, M72, F
Shipping weight (estimated)0.89 kg
