100 mm, 3.35x, M59-mount Line Scan Lens (LS-SLS1635-16K)
  • 100 mm, 3.35x, M59-mount Line Scan Lens (LS-SLS1635-16K)

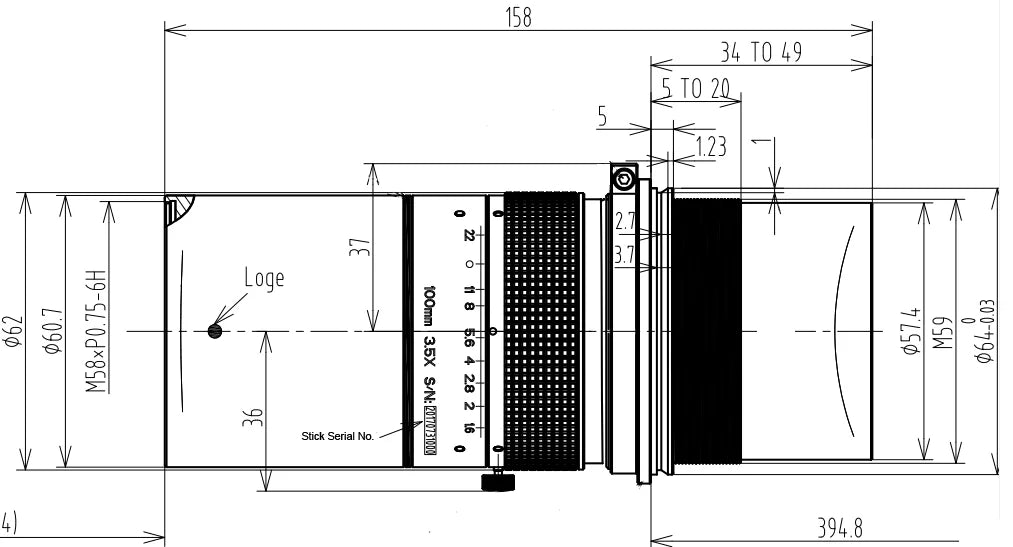

  • LS-SLS1635-16K dimensions (mm)

Line scan lenses

100 mm, 3.35x, M59-mount Line Scan Lens (LS-SLS1635-16K)

Model LS-SLS1635-16K

  • Focal length100 mm
  • Magnification3.35x / 3.5x / 3.65x
  • MountM59
  • SensorLarge format
  • Working distance49.7±5 / 48.4±5 / 47.3±5
  • ApertureF1.6 Manual Iris
$2,309.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 or a formal quote?

100 mm, 3.35x, M59-mount Line Scan Lens. Ultra-high-resolution 16K line scan lens with a dia. 82 image circle, 1 μm resolution for 3.5 μm / 5 μm cameras, <0.01% distortion and 3° telecentricity, for OLED screen defect inspection. At a glance: magnification 3.35x / 3.5x / 3.65x; focal length 100 mm; format dia. 82 mm; resolution 16K; aperture F1.6 Manual Iris.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SLS1635-16K
Angle of view (D)26.6 deg
Conjugate distance at 3.35x / 3.5x / 3.65x537.99±9 / 551.79±9 / 565.71±9
Accuracy1 μm clearance
Image-space NA0.054
Object-space NA0.185
ApplicationOLED inspection
Formatdia. 82 mm

Optics

Focal length100 mm
Max. image circledia. 82
ApertureF1.6 Manual Iris
Magnification3.35x / 3.5x / 3.65x
Working distance (A+B) at 3.35x / 3.5x / 3.65x49.7±5 / 48.4±5 / 47.3±5
Flange focal distance at 3.35x / 3.5x / 3.65x379.7±0.5 / 394.8±0.5 / 409.9±0.5
Distortion<0.01%
Telecentricity3°
MTF200 lp/mm on axis; 160 lp/mm at dia. 46.2; 125 lp/mm at dia. 66; 100 lp/mm at dia. 82
Magnification / working distance3.35x: 49.7 mm; 3.5x: 48.4 mm; 3.65x: 47.3 mm

Sensor and imaging

Resolution16K
Pixel size match3.5 μm / 5 μm cameras

Mechanical

Entrance pupil diameter62.2
MountM59
Front threadM58 x P0.75-6H
Exit pupil diameter45.5
Shipping weight (estimated)0.94 kg
