CCTV lenses
1.1 mm, 1/2.6", 10 MP, M12-mount Fisheye Lens (LS-SFY1122FIR-10M)
Model LS-SFY1122FIR-10M
- Focal length1.1 mm
- MountM12
- Sensor1/2.6"
- ApertureF22 Fixed Iris
- Resolution10 Megapixel
$49.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.11 kg shipping weight
Volume pricing, Net 30 or a formal quote?
1.1 mm, 1/2.6", 10 MP, M12-mount Fisheye Lens. 1.1 mm, 10 megapixel IR-corrected M12 fisheye lens for 1/2.6" sensors (image circle dia. 3.6 mm at 200 deg) with a 200-degree field of view. At a glance: focal length 1.1 mm; format 1/2.6"; resolution 10 Megapixel; aperture F22 Fixed Iris; mount M12.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SFY1122FIR-10M |
|---|---|
| IR corrected | IR |
| Format | 1/2.6" |
| Angle of view (1/2.6", DxHxV) | 200 x 200 x 200 deg |
| Angle of view (1/3", DxHxV) | 200 x 200 x 200 deg |
| Angle of view (1/4", DxHxV) | 200 x 200 x 146 deg |
| Notes | -30°C~+80°C |
| IR correction | IR |
Optics
| Image circle | dia. 3.6 @200° |
|---|---|
| Focal length | 1.1 mm |
| Aperture | F22 Fixed Iris |
| M.O.D. | 0.3 m |
| Back focal length | 2.78 mm |
| Distortion | -97.5% |
| Back focal length (optical) | 2.78mm |
| Total track length (TTL) | 25.54mm |
Sensor and imaging
| Resolution | 10 Megapixel |
|---|

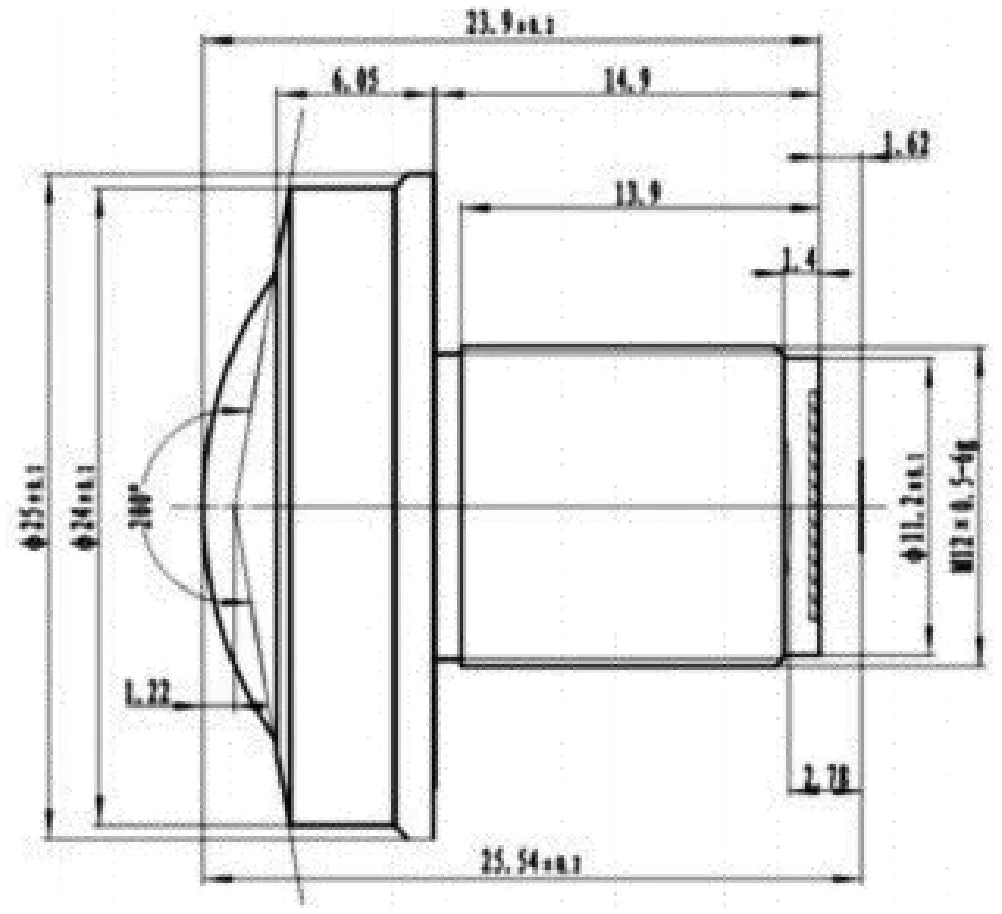

Mechanical
| Total track length | 25.54 mm |
|---|---|
| Size | dia. 25 x 22.76 mm |
| Mount | M12 |
| Weight | 9 g |
| Image height | dia. 3.6 @200° |
| Shipping weight (estimated) | 0.11 kg |
