1.8 mm, 1/2.7", 3 MP, M12-mount Fisheye Lens (LS-SFY1828FIR-3M)
  • 1.8 mm, 1/2.7", 3 MP, M12-mount Fisheye Lens (LS-SFY1828FIR-3M)

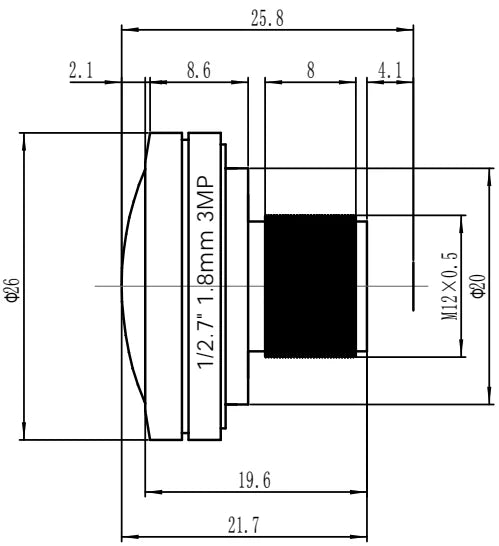

  • LS-SFY1828FIR-3M dimensions (mm)

CCTV lenses

1.8 mm, 1/2.7", 3 MP, M12-mount Fisheye Lens (LS-SFY1828FIR-3M)

Model LS-SFY1828FIR-3M

  • Focal length1.8 mm
  • MountM12
  • Sensor1/2.7"
  • ApertureF2.8 Fixed Iris
  • Resolution3 Megapixel
$89.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.12 kg shipping weight

Volume pricing, Net 30 or a formal quote?

1.8 mm, 1/2.7", 3 MP, M12-mount Fisheye Lens. 1.8 mm, 3 megapixel IR-corrected M12 fisheye lens for 1/2.7" sensors (image circle dia. 5.3 mm) with a 185-degree field of view. At a glance: focal length 1.8 mm; format 1/2.7"; resolution 3 Megapixel; aperture F2.8 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SFY1828FIR-3M
IR correctedIR
Format1/2.7"
Angle of view (1/1.8", DxHxV)185 x 185 x 185 deg
Angle of view (1/2.7", DxHxV)185 x 185 x 148 deg
Angle of view (1/3.6", DxHxV)185 x 148 x 111 deg
Notes-20°C~+60°C
IR correctionIR

Optics

Image circledia. 5.3
Focal length1.8 mm
ApertureF2.8 Fixed Iris
M.O.D.0.3 m
Back focal length4.3 mm
Distortion-100%
Back focal length (optical)4.3mm
Total track length (TTL)27.72mm

Sensor and imaging

Resolution3 Megapixel

Mechanical

Total track length27.72 mm
Sizedia. 26 x 21.7 mm
MountM12
Weight13 g
Image heightdia. 5.3
Shipping weight (estimated)0.12 kg
