Collimated lights
Parallel (collimated) light sources for SDM telecentric lenses, beam 258 mm, length 436.8 mm (LS-SDL258)
Model LS-SDL258
- ColourRed, Green, Blue, White
- Beam diameter258 mm
- Working distance range145-290 mm
- Length L436.8 mm
$2,489.00
In stock - ships the same business day (2 available, order by 2 PM ET)
4.83 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Parallel (collimated) light sources for SDM telecentric lenses. Each light pairs with the SDM telecentric lens of the same field size; the front lens group is also listed under its own model. At a glance: working distance range 145-290 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL258 |
|---|---|
| Front lens group model (sold separately) | LS-SDLF258 |
Optics
| Working distance range (mm) | 145-290 |
|---|---|
| Compatible telecentric lens | LS-SDM258 |
Light
| Color options | Red 630 nm, Green 520 nm, Blue 460 nm, White |
|---|---|
| Beam diameter (mm) | 258 |

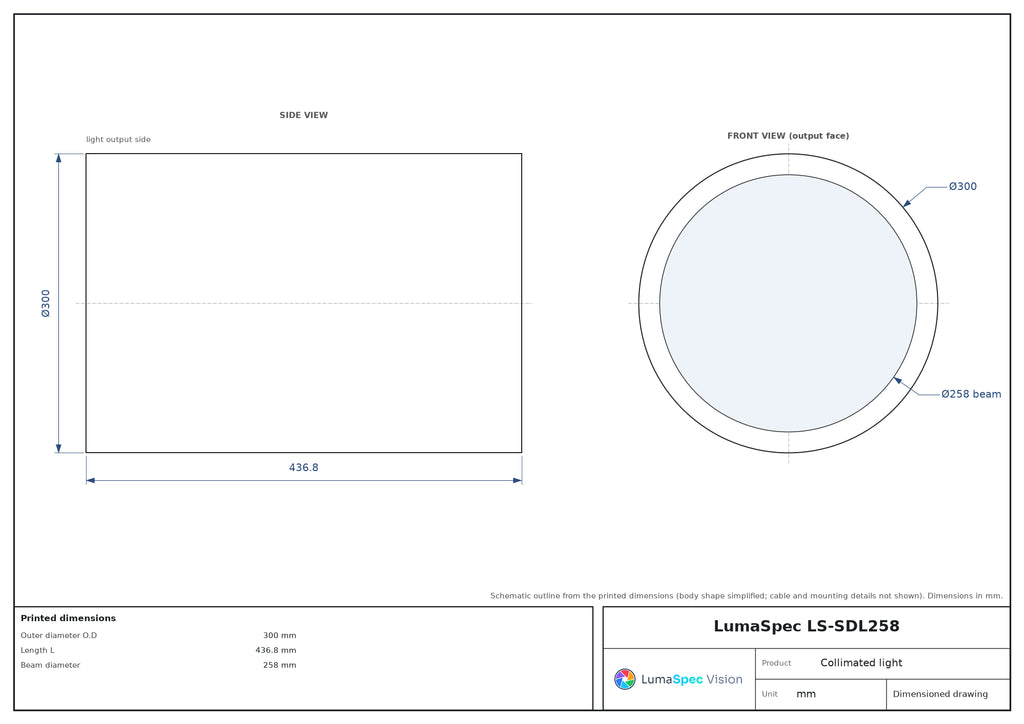

Mechanical
| Length L (mm) | 436.8 |
|---|---|
| Outer diameter O.D (mm) | 300 |
| Shipping weight (estimated) | 4.83 kg |

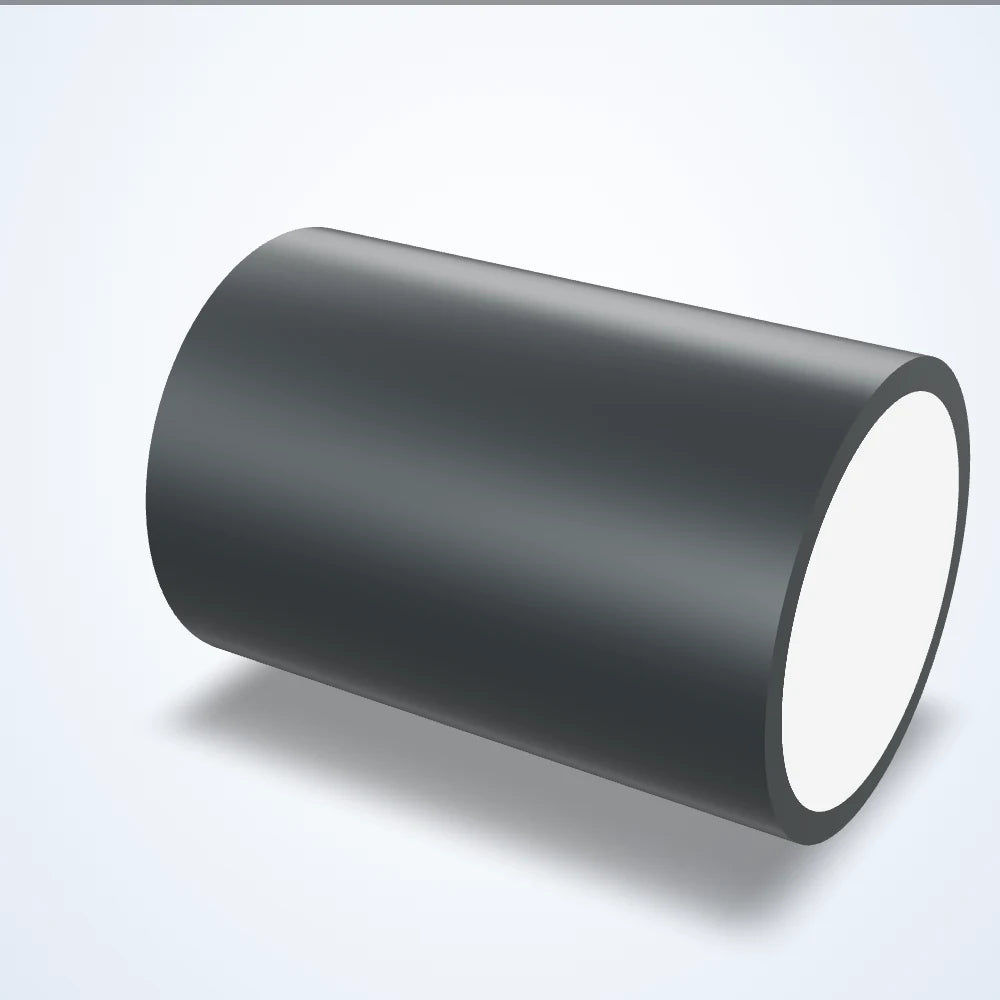

Rendered illustration: the actual product may differ in appearance.
