Collimated lights
Parallel (collimated) light sources for SDM telecentric lenses, beam 59 mm, length 151.5 mm (LS-SDL59)
Model LS-SDL59
- ColourRed, Green, Blue, White
- Beam diameter59 mm
- Working distance range28-57 mm
- Length L151.5 mm
$789.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Parallel (collimated) light sources for SDM telecentric lenses. Each light pairs with the SDM telecentric lens of the same field size; the front lens group is also listed under its own model. At a glance: working distance range 28-57 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL59 |
|---|---|
| Front lens group model (sold separately) | LS-SDLF59 |
Optics
| Working distance range (mm) | 28-57 |
|---|---|
| Compatible telecentric lens | LS-SDM59 |
Light
| Color options | Red 630 nm, Green 520 nm, Blue 460 nm, White |
|---|---|
| Beam diameter (mm) | 59 |

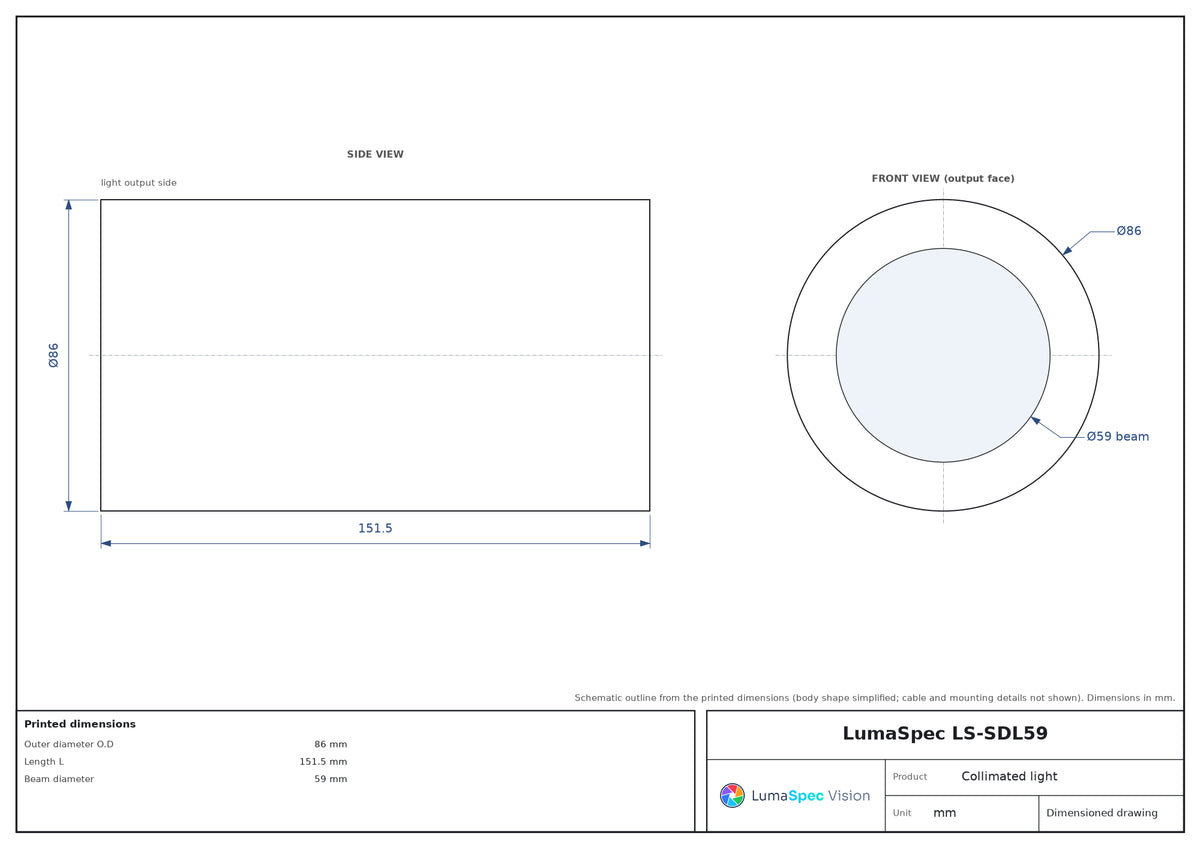

Mechanical
| Length L (mm) | 151.5 |
|---|---|
| Outer diameter O.D (mm) | 86 |
| Shipping weight (estimated) | 0.70 kg |

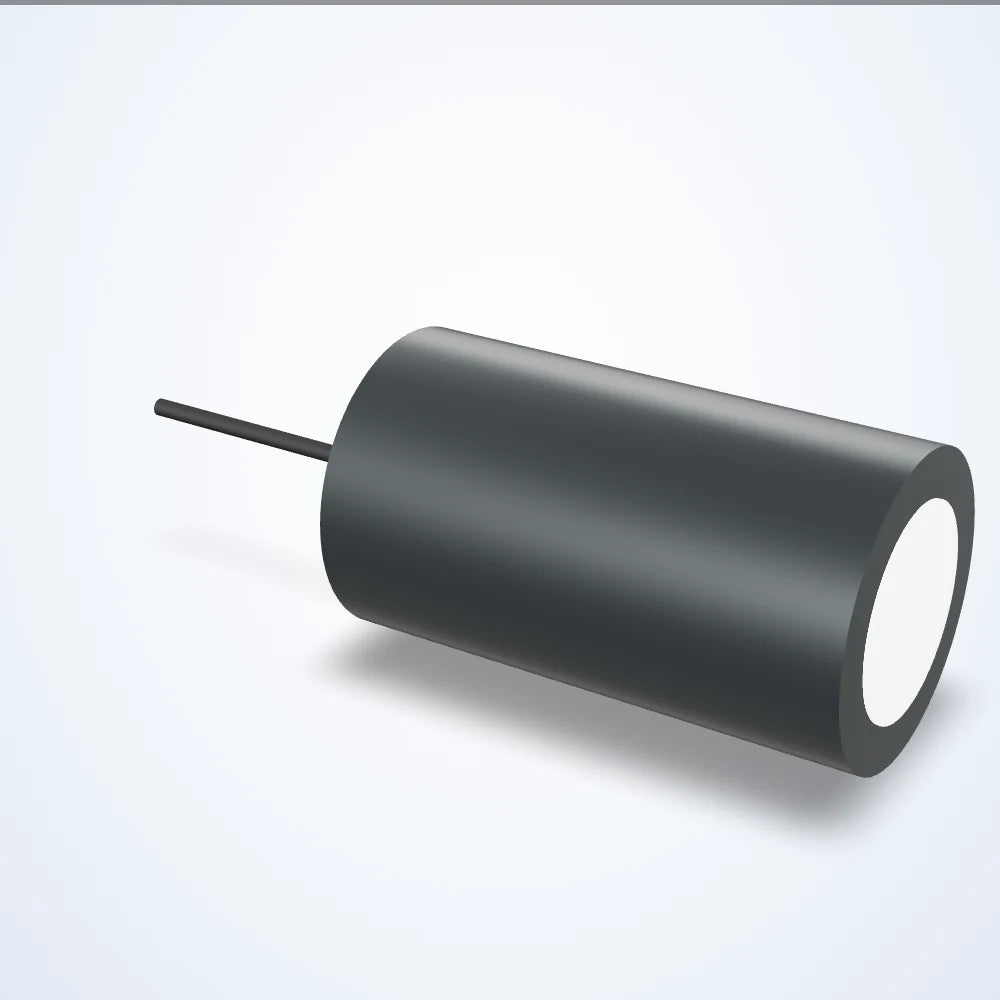

Rendered illustration: the actual product may differ in appearance.
Other models in the Parallel (collimated) light sources for SDM telecentric lenses (SDL series) series
See all 29 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL16.6 | Red, Green, Blue, White · 16.6 mm | $419.00 | 3 in stock | View |
| LS-SDL24 | Red, Green, Blue, White · 24 mm | $489.00 | 3 in stock | View |
| LS-SDL26 | Red, Green, Blue, White · 26 mm | $499.00 | 4 in stock | View |
| LS-SDL29 | Red, Green, Blue, White · 29 mm | $529.00 | 4 in stock | View |
| LS-SDL33 | Red, Green, Blue, White · 33 mm | $559.00 | 2 in stock | View |
| LS-SDL36 | Red, Green, Blue, White · 36 mm | $589.00 | 5 in stock | View |
| LS-SDL39 | Red, Green, Blue, White · 39 mm | $609.00 | 3 in stock | View |
| LS-SDL42 | Red, Green, Blue, White · 42 mm | $639.00 | 5 in stock | View |
| LS-SDL48 | Red, Green, Blue, White · 48 mm | $689.00 | 3 in stock | View |
| LS-SDL268 | 318 mm · 145-290 mm | $709.00 | 5 in stock | View |
| LS-SDLK215 | 248 mm · 150-210 mm | $709.00 | 3 in stock | View |
| LS-SDL56 | Red, Green, Blue, White · 56 mm | $759.00 | 4 in stock | View |
| LS-SDL64H | Red, Green, Blue, White · 64 mm | $829.00 | 5 in stock | View |
| LS-SDL72 | Red, Green, Blue, White · 72 mm | $899.00 | 5 in stock | View |
| LS-SDL80H | Red, Green, Blue, White · 80 mm | $969.00 | 4 in stock | View |
| LS-SDL90 | Red, Green, Blue, White · 90 mm | $1,049.00 | 5 in stock | View |
| LS-SDL94 | Red, Green, Blue, White · 94 mm | $1,089.00 | 2 in stock | View |
| LS-SDL100H | Red, Green, Blue, White · 100 mm | $1,139.00 | 4 in stock | View |
| LS-SDL110 | Red, Green, Blue, White · 110 mm | $1,219.00 | 3 in stock | View |
| LS-SDL120H | Red, Green, Blue, White · 120 mm | $1,309.00 | 5 in stock | View |
| LS-SDL136 | Red, Green, Blue, White · 136 mm | $1,449.00 | 5 in stock | View |
| LS-SDL150H | Red, Green, Blue, White · 150 mm | $1,569.00 | 3 in stock | View |
| LS-SDL170 | Red, Green, Blue, White · 170 mm | $1,739.00 | 2 in stock | View |
| LS-SDL190H | Red, Green, Blue, White · 190 mm | $1,909.00 | 2 in stock | View |
