Telecentric lenses
0.166x, WD 173 mm, 2/3", C-mount Telecentric Lens (LS-SDA66)
Model LS-SDA66
- Magnification0.166x
- MountC-mount
- Sensor2/3"
- Working distance173 mm
- Aperture3.3-Close
- Field of view66
$1,689.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 or a formal quote?
0.166x, WD 173 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 0.166x; working distance 173 mm; max sensor size 11 mm (2/3"); object field of view 66 mm; object-side resolution 13.42 µm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDA66 |
|---|
Optics
| Telecentric type | Bi-telecentric |
|---|---|
| Object field of view (dia. mm) | 66 |
| Magnification (x) | 0.166 |
| Working distance (mm) | 173 |
| Image-side F/# | 3.3-Close |
| Image-side MTF30 (lp/mm) | >260 |
| Theoretical depth of field (mm) | ±4.8@F3.3 |
| Image-side distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 329 |
| Numerical aperture NA | 0.025 |
| Object-side resolution (um) | 13.42 |

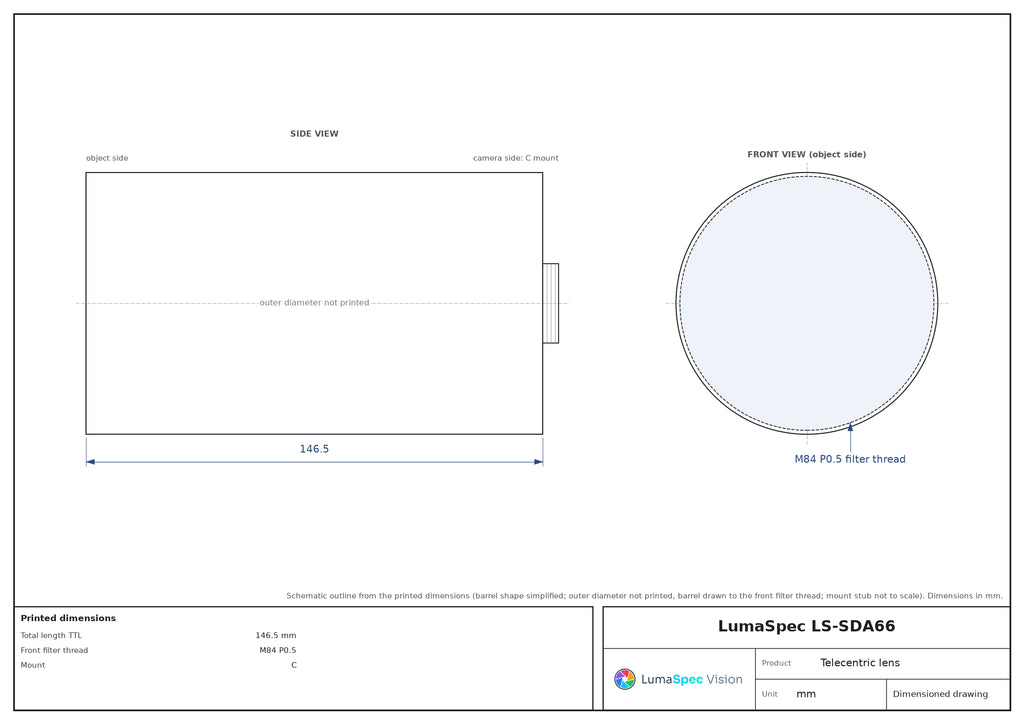

| Total length TTL (mm) | 146.5 |
| Manual iris | Yes |
| Coaxial illumination | No |
| Front filter thread | M84 P0.5 |
| Measured depth of field as shipped (mm) | 2 |
Sensor and imaging
| Max sensor size (dia. mm) | 11(2/3") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 0.6 |
| Shipping weight (estimated) | 0.94 kg |
Photo shows a representative model of this series; see the specifications for this model.
