Telecentric lenses
0.4x, WD 208 mm, 1.75", M42-mount Telecentric Lens (LS-S175DA79)
Model LS-S175DA79
- Magnification0.4x
- MountM42
- Sensor1.75"
- Working distance208 mm
- Aperture10.4
- Field of view79
$1,909.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
0.4x, WD 208 mm, 1.75", M42-mount Telecentric Lens. At a glance: magnification 0.4x; working distance 208 mm; sensor class 1.75"; object field of view 79 mm; image-side f/# 10.4.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S175DA79 |
|---|
Optics
| Telecentric type | Bi-telecentric |
|---|---|
| Object field of view (dia. mm) | 79 |
| Magnification (x) | 0.4 |
| Working distance (mm) | 208 |
| Image-side F/# | 10.4 |
| Image-side MTF30 (lp/mm) | >98 |
| Theoretical depth of field (mm) | 5.2 |
| Image-side distortion (% max) | <0.08 |
| Telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 524 |

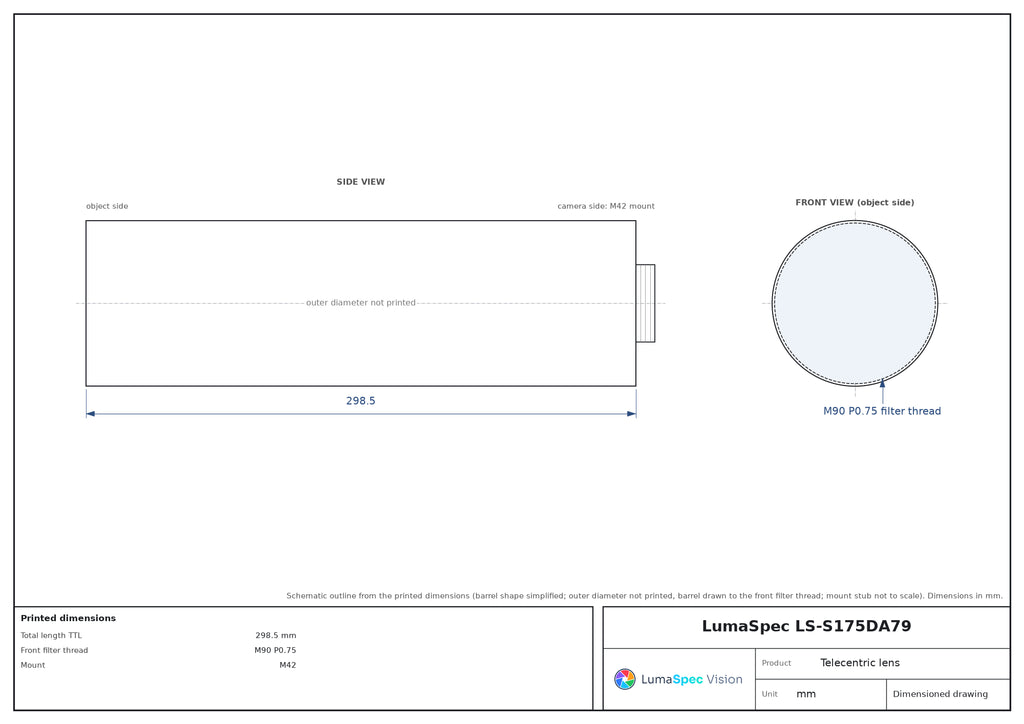

| Total length TTL (mm) | 298.5 |
| Manual iris | No |
| Coaxial illumination | No |
| Front filter thread | M90 P0.75 |
Sensor and imaging
| Sensor class | 1.75" |
|---|---|
| Max sensor size (dia. mm) | 29(1.75") |
Mechanical
| Mount | M42 |
|---|---|
| Shipping weight (estimated) | 1.45 kg |
Photo shows a representative model of this series; see the specifications for this model.
