50 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens (LS-SAVK5014-5MC)
  • 50 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens (LS-SAVK5014-5MC)

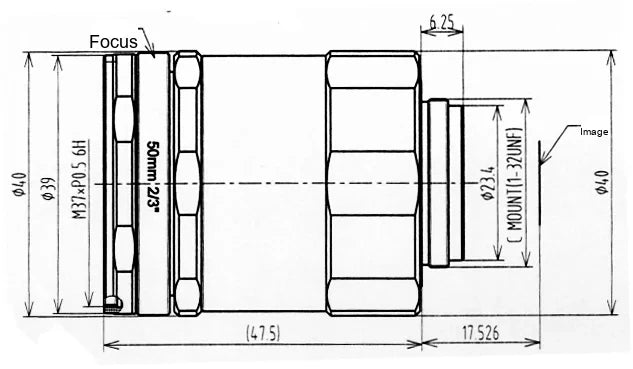

  • LS-SAVK5014-5MC dimensions (mm)

Machine vision lenses

50 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens (LS-SAVK5014-5MC)

Model LS-SAVK5014-5MC

  • Focal length50 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF1.4 Manual iris
  • Resolution5.0 Megapixel
$199.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.25 kg shipping weight

Volume pricing, Net 30 or a formal quote?

50 mm, 2/3", 5 MP, C-mount Anti-Vibration Machine Vision Lens. 50 mm F1.4 anti-vibration (anti-shock) lens for 2/3" cameras, rated 5 megapixel, with <-0.8% TV distortion and a compact body. For automation and machine vision in areas with vibration. At a glance: focal length 50 mm; format 2/3"; resolution 5.0 Megapixel; aperture F1.4 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SAVK5014-5MC
Format2/3"
Angle of view (2/3")13 x 10.5 x 7.86 deg
Angle of view (1/2")9.5 x 7.6 x 5.27 deg
PerformanceAnti-shock

Optics

Focal length50 mm
ApertureF1.4 Manual iris
M.O.D.0.3 m
Distortion (TV)<-0.8%
IrisFixed/Manual iris
W.D. / magnification / FOV 2/3" (H x V mm)2000 mm: 0.025X (352.0 x 264.0); 1000 mm: 0.051X (172.5 x 129.4); 900 mm: 0.057X (154.4 x 115.8); 850 mm: 0.06X (146.7 x 110.0); 800 mm: 0.064X (137.5 x 103.1); 750 mm: 0.068X (129.4 x 97.1); 700 mm: 0.073X (120.5 x 90.4); 650 mm: 0.079X (111.4 x 83.5); 600 mm: 0.0858X (102.6 x 76.9); 550 mm: 0.094X (93.6 x 70.2); 500 mm: 0.104X (85.6 x 63.5); 450 mm: 0.116X (75.9 x 56.9); 400 mm: 0.131X (67.2 x 50.4); 350 mm: 0.15X (58.7 x 44.0); 300 mm: 0.177X (49.7 x 37.3)

Sensor and imaging

Resolution5.0 Megapixel

Environment and compliance

Operating temperature-10° ~ +50°

Mechanical

Filter sizeM37 x P0.5
Sizedia. 40 x 47.5 mm
MountC
Weight105 g
Shipping weight (estimated)0.25 kg
