Machine vision lenses
50 mm, 2/3", 8 MP, C-mount Anti-Vibration Machine Vision Lens (LS-S23AV5024-8M)
Model LS-S23AV5024-8M
- Focal length50 mm
- Magnification0.034x ~ 0.296x
- MountC-mount
- Sensor2/3"
- ApertureF2.4 Manual iris
- Resolution8.0 Megapixel (2.74 μm)
$199.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
50 mm, 2/3", 8 MP, C-mount Anti-Vibration Machine Vision Lens. 50 mm 2/3" 8 MP anti-vibration C-mount lens, F2.4 manual iris, magnification 0.034x ~ 0.296x. At a glance: magnification 0.034x ~ 0.296x; focal length 50 mm; format 2/3" (dia. 11 mm); resolution 8.0 Megapixel (2.74 μm); aperture F2.4 Manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S23AV5024-8M |
|---|---|
| Format | 2/3" (dia. 11 mm) |
| W.D. | 200 mm |
| Character | -20℃~+60℃ focusing |
Optics
| Focal length | 50 mm |
|---|---|
| Magnification | 0.034x ~ 0.296x |
| Aperture | F2.4 Manual iris |
| Field of view (2/3") | 26.4 x 26.3 mm (H x V @200mm) |
| Field of view (1/1.8") | 22.9 x 19.1 mm (H x V @200mm) |
| Filter thread | M27 x 0.5-6H |
| Distortion | 0.00% @290mm WD |
Sensor and imaging
| Resolution | 8.0 Megapixel (2.74 μm) |
|---|
Mechanical

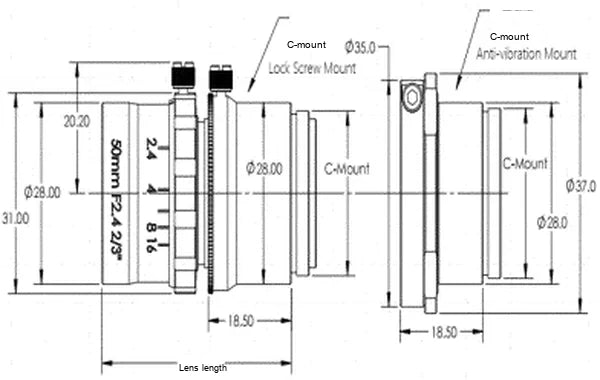

| Size | dia. 35 x 54.7 mm |
|---|---|
| Mount | C |
| Weight | 72 g |
| Shipping weight (estimated) | 0.20 kg |
