M12 board lenses
4 mm, 1/1.8", 4 MP, M12-mount Starlight Low-Light Lens (LS-S18BF0416IR-4M)
Model LS-S18BF0416IR-4M
- Focal length4.0mm
- MountM12
- Sensor1/1.8"
- ApertureF1.6 Fixed iris
- Resolution4.0 Megapixel
$39.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.11 kg shipping weight
Volume pricing, Net 30 or a formal quote?
4 mm, 1/1.8", 4 MP, M12-mount Starlight Low-Light Lens. 4 mm 1/1.8" 4.0 megapixel M12 board lens, F1.6, TTL 24 mm, for bullet and dome security cameras. At a glance: focal length 4.0mm; format 1/1.8"; resolution 4.0 Megapixel; aperture F1.6 Fixed iris; mount M12 x 0.5 ( S-mount ).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S18BF0416IR-4M |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8", DxHxV) | 125 x 107.3 x 59.1 deg |
| CRA | <16.4° |
| Notes | Working temperature -30°~ +70° |
| IR correction | Yes (day & night) |
Optics
| Focal length | 4.0mm |
|---|---|
| Aperture | F1.6 Fixed iris |
| M.O.D. | 0.5m |
| Distortion | -45.7% |
| Back focal length (optical) | 4.79mm (in air) |
| Mechanical back focal length | 4.57mm (in air) |
Sensor and imaging
| Resolution | 4.0 Megapixel |
|---|

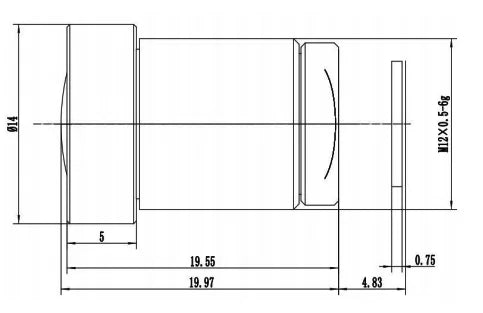

Mechanical
| Optical total length | 24.8mm |
|---|---|
| Size | dia. 14 x 19.97mm |
| Mount | M12 x 0.5 ( S-mount ) |
| Weight | 5.8g |
| Shipping weight (estimated) | 0.11 kg |
