4 mm, 1/1.8", 5 MP, M16-mount Starlight Low-Light Lens (LS-M16-DH0495IR)
Model LS-M16-DH0495IR
- Focal length4.0 mm
- MountM16
- Sensor1/1.8"
- ApertureF0.95 Fixed iris
- Resolution5.0 Megapixel
$39.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.12 kg shipping weight
Volume pricing, Net 30 or a formal quote?
4 mm, 1/1.8", 5 MP, M16-mount Starlight Low-Light Lens. High resolution: 5.0 megapixel can cover 3MP,1080P. Big aperture: F0.95 black light support super dark vision. Large format: 1/1.8" can cover all 1/1.8", 1/2". At a glance: focal length 4.0 mm; format 1/1.8"; resolution 5.0 Megapixel; aperture F0.95 Fixed iris; mount M16 x P0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-M16-DH0495IR |
|---|---|
| IR correction | IR |
| Format | 1/1.8" |
| Angle of view (1/1.8", DxHxV) | 108 x 92 x 49 deg |
| Spectral transmission | >85%@550 nm,>83%@650 nm,>70%@850 nm |
| Notes | Metal body + Glass element |
Optics
| Focal length | 4.0 mm |
|---|---|
| Back focal length | 5.93 mm |
| Aperture | F0.95 Fixed iris |
| M.O.D. | 0.2 m |
| Distortion | -12.9% |
| Relative illumination | 45% @ dia. 8.8 |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

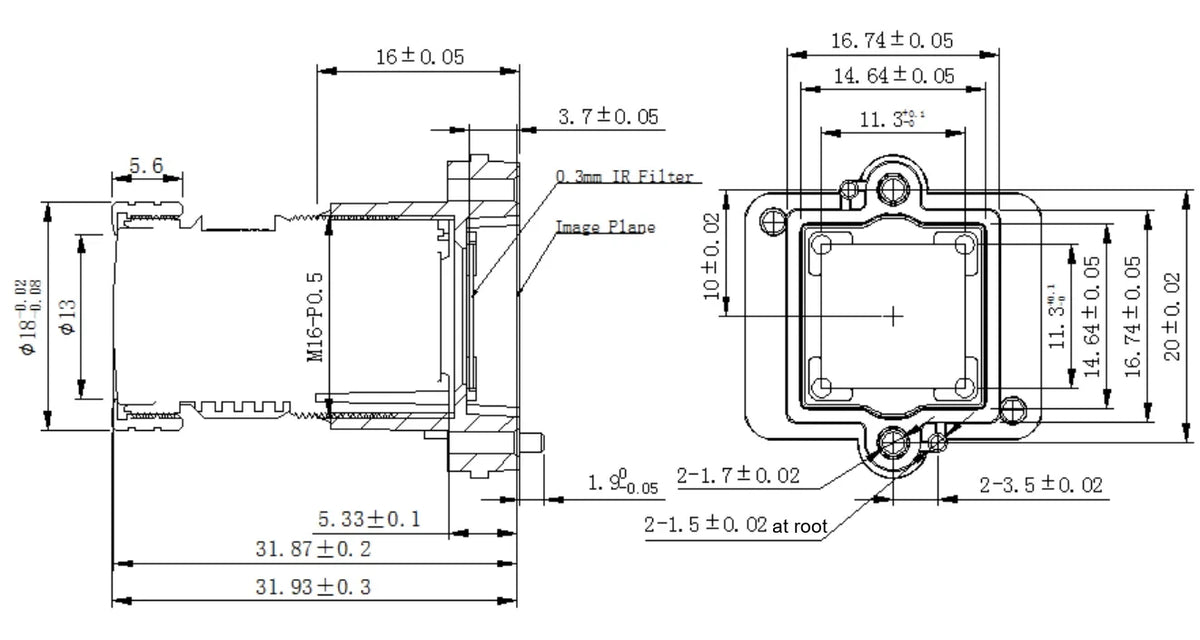

Mechanical
| Size | dia. 18 x 26.6 |
|---|---|
| Optical total length | 31.93 mm |
| Mount | M16 x P0.5 |
| Weight | 16 g |
| Shipping weight (estimated) | 0.12 kg |
