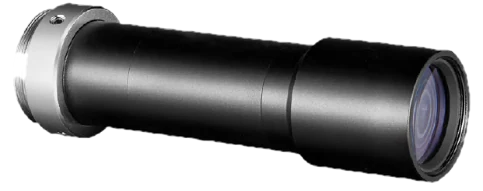

Object-Side Telecentric Lens, 0.3x, 240 mm WD, 2/3" (LS-MY-03-240)
  • Object-Side Telecentric Lens, 0.3x, 240 mm WD, 2/3" (LS-MY-03-240)

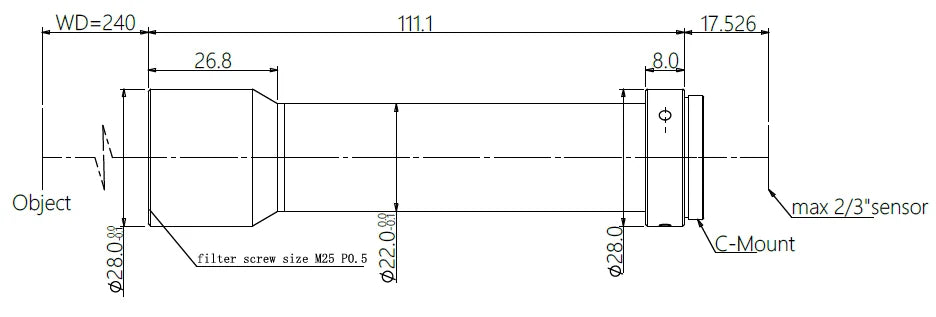

  • LS-MY-03-240 dimensions (mm)

Telecentric lenses

Object-Side Telecentric Lens, 0.3x, 240 mm WD, 2/3" (LS-MY-03-240)

Model LS-MY-03-240

  • Magnification0.3
  • MountC-mount
  • Sensor2/3"
  • Working distance240 mm
  • ApertureF9.5
$1,929.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Object-Side Telecentric Lens, 0.3x, 240 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MY-03-240

Optics

Magnification0.3
Working distance240 mm
F-numberF9.5
Image sizeΦ11 mm
Depth of field8.4 mm
Distortion≤0.1%
Object-side resolution21.2 μm
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10 ~ 50 °C
CertificationRoHS2.0

Mechanical

Dimension111.1 mm × Φ28 mm
Shipping weight (estimated)0.66 kg
