Telecentric lenses

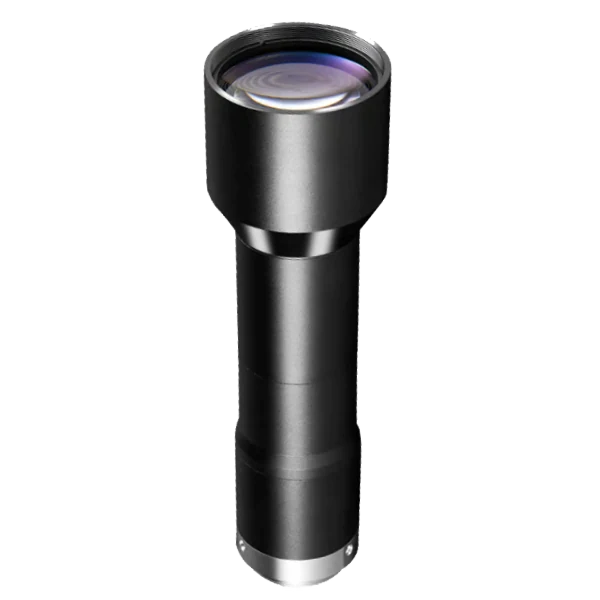

Object-Side Telecentric Lens, 0.4x, 110 mm WD, 2/3" (LS-MT-04-110)
Model LS-MT-04-110
- Magnification0.4
- MountC-mount
- Sensor2/3"
- Working distance110 ± 2 mm
- ApertureF7
$1,039.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.26 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 0.4x, 110 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MT-04-110 |
|---|
Optics
| Magnification | 0.4 |
|---|---|
| Working distance | 110 ± 2 mm |
| F-number | F7 |
| Image size | Φ11 mm |
| Optical distortion | < 0.02% |
| Depth of field | ±1.8 mm @F7 |
| Object-side resolution | 8.9 μm |
| Object-side telecentricity | < 0.03° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

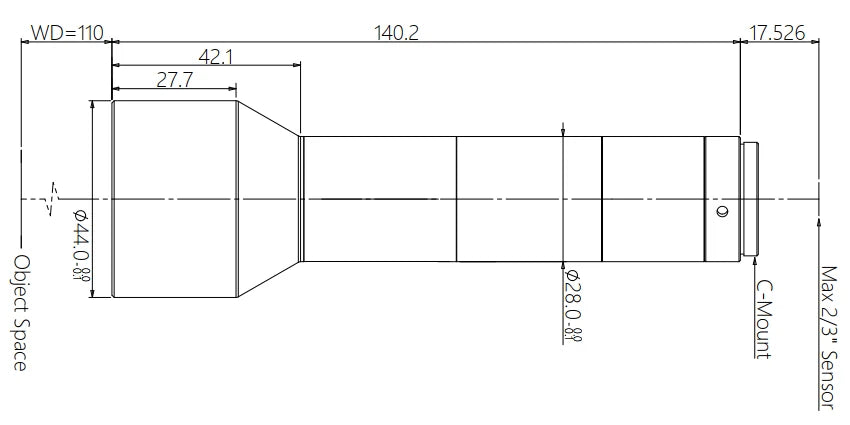

| Dimension | 140.2 mm × Φ44 mm |
|---|---|
| Weight | 115 g |
| Shipping weight (estimated) | 0.26 kg |
