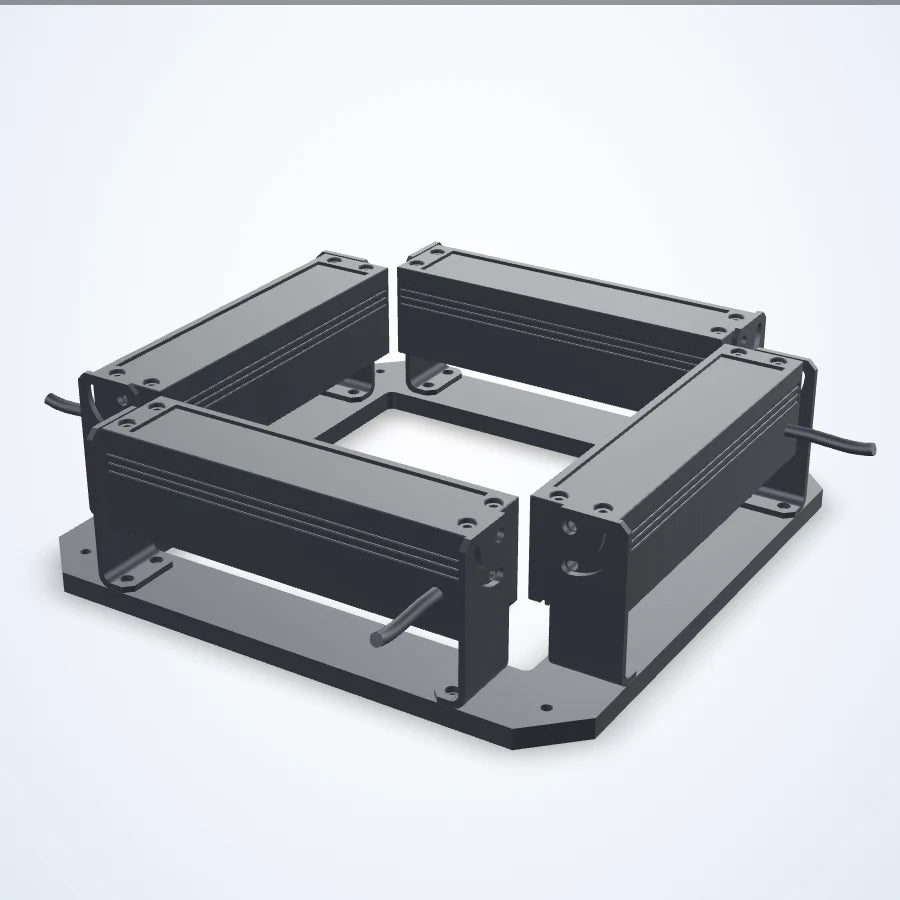

80 x 80 mm Four-Bar Square LED Bar Light (LS-MLB-80X80)

Model LS-MLB-80X80

ColourRed, Green, Blue, White
Size141x141x43 mm
Voltage24 V
TypeStrip / combination

$739.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.8 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 or a formal quote?

80 x 80 mm Four-Bar Square LED Bar Light. Combined bar light (four bar lights on a square frame) for large-size product defect detection, character recognition, positioning and identification. The angle can be customized and each bar light can be controlled independently.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-MLB-80X80

Light

Colours	Red, Green, Blue, White
LED colour options (legend)	R / G / B / W / IR / UV
Colours shown per model	R, G, B, W

Electrical

Voltage (V)	24
Power R (W)	10
Power G/B/W (W)	12

Mechanical

Outer size L x W x H (mm)	141x141x43
Shipping weight (estimated)	0.80 kg

Mounting and drawing data

drawing: outer 141, mounting-hole pitch 121, emitting 80 per bar, inner opening 93.5x93.5, depth 43, 4-M3 mounting holes, bars tilt up to 90 deg, 5 offset
