290 x 290 mm Four-Bar Square LED Bar Light (LS-MLB-290X290)

Model LS-MLB-290X290

ColourRed, Green, Blue, White
Size377.5x377.5x43 mm
Voltage24 V
TypeStrip / combination

$969.00

In stock - ships the same business day (4 available, order by 2 PM ET)

3.7 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 or a formal quote?

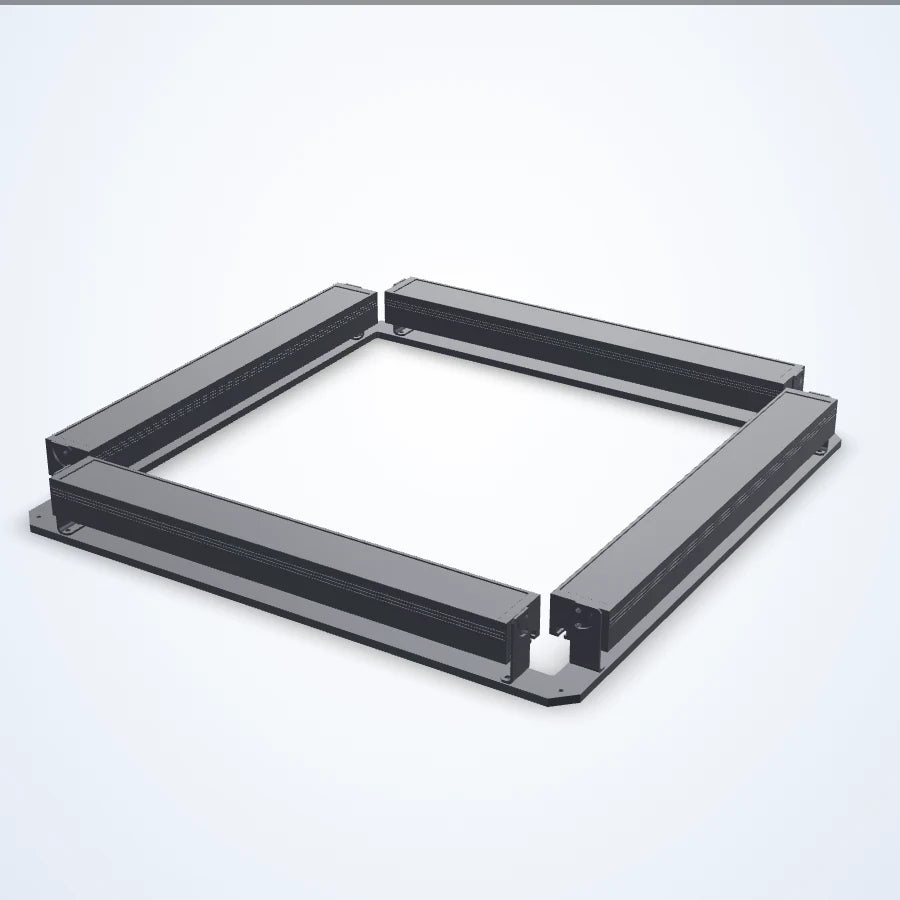

290 x 290 mm Four-Bar Square LED Bar Light. Combined bar light (four bar lights on a square frame) for large-size product defect detection, character recognition, positioning and identification. The angle can be customized and each bar light can be controlled independently.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-MLB-290X290

Light

Colours	Red, Green, Blue, White
LED colour options (legend)	R / G / B / W / IR / UV
Colours shown per model	R, G, B, W

Electrical

Voltage (V)	24
Power R (W)	60
Power G/B/W (W)	72

Mechanical

Outer size L x W x H (mm)	377.5x377.5x43
Shipping weight (estimated)	3.70 kg

Mounting and drawing data

drawing: outer 377.5, mounting-hole pitch 351, emitting 290 per bar, inner opening 309.5x309.5, depth 43, 8-M3 mounting holes, bars tilt up to 90 deg, 5 offset

Other models in the Combined bar light (MLB series) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-MLB-40X40	40 x 40 mm	$389.00	12 in stock	View
LS-MLB-80X80	80 x 80 mm	$469.00	13 in stock	View
LS-MLB-119X119	119 x 119 mm	$549.00	13 in stock	View
LS-MLB-98X98	98 x 98 mm	$559.00	16 in stock	View
LS-MLB-218X218	218 x 218 mm	$809.00	15 in stock	View
LS-MLB-386X386	386 x 386 mm	$1,169.00	14 in stock	View
