Representative photo of this series
Machine vision lenses
Large format lens, 35 mm, F-Mount, working distance 350.9 mm (LS-MF3502A)
Model LS-MF3502A
- Focal length35 mm
- Magnification0.01X-0.4X
- MountF-mount
- SensorFull frame
- Working distance350.9 mm
- ApertureF2.8-16
$679.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Large format lenses with max image circle up to 43 mm, supporting 29MP sensors and suitable for 4K line scan cameras with 5 µ/7 µ pixels; better optical performance than SLR lenses, with standard EFL and magnification options, applied to printing and packaging inspection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MF3502A |
|---|---|
| EFL | 35mm |
| F/NO | 2.8-16 |
| Conjugate distance | 474.5 |
| Flange distance | 46.5 |
Optics
| Magnification range | 0.01X-0.4X |
|---|---|
| Distortion | <0.01% |
| Standard magnification | 0.1X |
| Image size (dia.) | dia. 45 |
| Optical distortion | <0.4% |
| Working distance | 350.9 |
| Focal length (mm) | 35 |
| Aperture | F2.8-16 |
Sensor and imaging
| Sensor format | dia. 45 mm image circle |
|---|

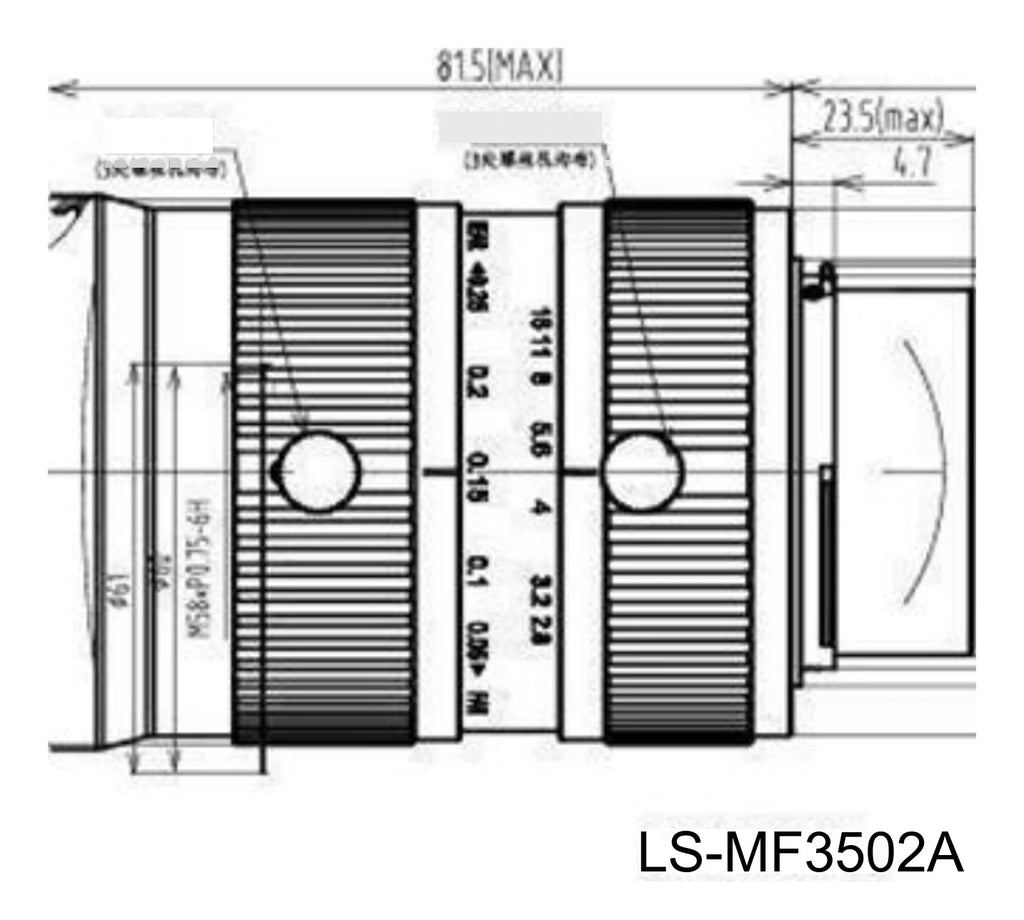

Mechanical
| Mount | F-Mount |
|---|---|
| Filter size | M58×P0.75 |
| Shipping weight | 0.38 kg |
Other models in the Large format lens series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MF3515A | 35 mm, F-Mount | $679.00 | 2 in stock | View |
| LS-MF4010A | 40 mm, F-Mount | $709.00 | 2 in stock | View |
| LS-MF5015A | 50 mm, F-Mount | $779.00 | 2 in stock | View |
| LS-MF6016A | 60 mm, F-Mount | $839.00 | 5 in stock | View |
| LS-MF8003A | 80 mm, F-Mount | $969.00 | 4 in stock | View |
| LS-MF9005A | 90 mm, F-Mount | $1,039.00 | 2 in stock | View |
