M12 board lenses

M12 board lens, S mount, 14 mm, 1/1.7", M12-mount (LS-MBL-0006)

Model LS-MBL-0006

Focal length14mm
MountM12
Sensor1/1.7"
ApertureF2.8
Resolution12MP

$79.00

Ships in 2-3 weeks

0.13 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

M12 board lenses for industrial FA machine vision, face recognition, video conferencing and scanners (S mount).

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-MBL-0006
Format	1/1.7"
F No.	2.8
CRA	<8.2°

Optics

Focal length	14mm
Distortion	-1.48%
TTL (mm)	20.53
Aperture	F2.8
Relative illumination	80%
Image circle	dia. 9.2

Sensor and imaging

Resolution	12MP
Sensor format	1/1.7"
Pixel size	1.85μm

Mechanical

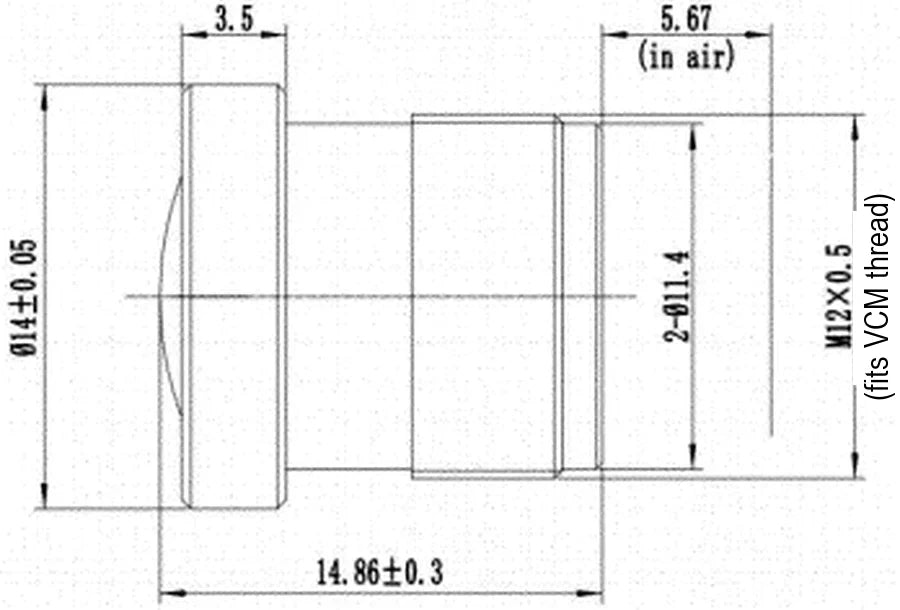

Size (mm)	dia. 14 x 14.86
Mount	M12
Weight	8g

Other models in the M12 board lens, S mount (LS-MBL-S01) series

See all 8 models

Model	Size / key data	Price	Availability	Link
LS-MBL-0008	5.5 mm, 1/1.8", M12-mount	$59.00	Ships in 2-3 weeks	View
LS-MBL-0005	4 mm, 1/1.8", M12-mount	$59.00	Ships in 2-3 weeks	View
LS-MBL-0001	25 mm, 1/2", M12-mount	$59.00	Ships in 2-3 weeks	View
LS-MBL-0002	35 mm, 1/2", M12-mount	$59.00	Ships in 2-3 weeks	View
LS-MBL-0003	50 mm, 1/2", M12-mount	$59.00	Ships in 2-3 weeks	View
LS-MBL-0007	22 mm, 1/1.8", M12-mount	$79.00	Ships in 2-3 weeks	View
LS-MBL-0004	5.4 mm, 1/2.3", M12-mount	$79.00	Ships in 2-3 weeks	View
