Rendered illustration: the actual product may differ in appearance.
M12 board lenses

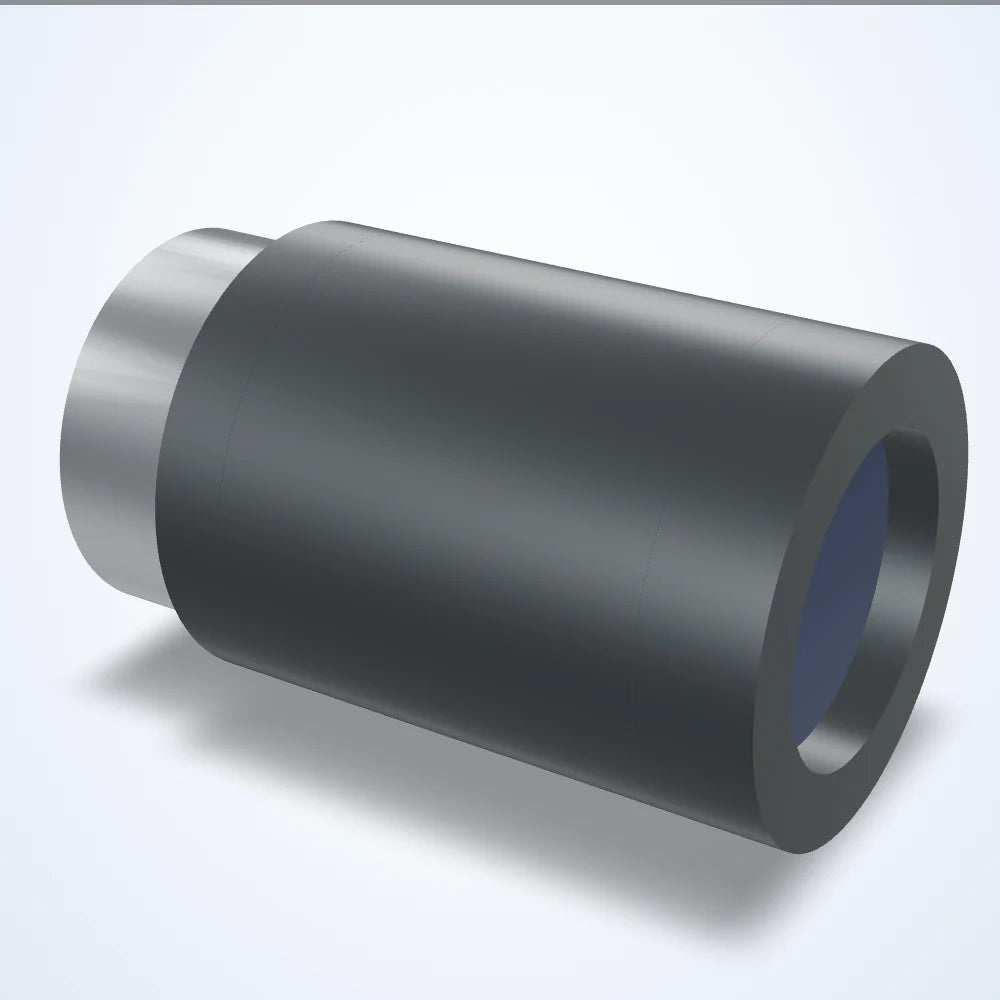

M12 board lens, S mount, 5.4 mm, 1/2.3", M12-mount (LS-MBL-0004)
Model LS-MBL-0004
- Focal length5.4mm
- MountM12
- Sensor1/2.3"
- ApertureF2.5
- Resolution10MP
- Field of viewD 70° / H 60° / V 46°
$79.00
Ships in 2-3 weeks
0.13 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
M12 board lenses for industrial FA machine vision, face recognition, video conferencing and scanners (S mount).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0004 |
|---|---|
| Format | 1/2.3" |
| F No. | 2.5 |
| BFL (mm) | 5.4 |
| MOD | 0.2m |
| FOV D (deg) | 70 |
| FOV H (deg) | 60 |
| FOV V (deg) | 46 |
| IR correction | IR |
Optics
| Focal length | 5.4mm |
|---|---|
| Distortion | -2% |
| TTL (mm) | 24.74 |
| Aperture | F2.5 |
| Field of view | D 70° / H 60° / V 46° |
Sensor and imaging
| Resolution | 10MP |
|---|---|
| Sensor format | 1/2.3" |
Mechanical

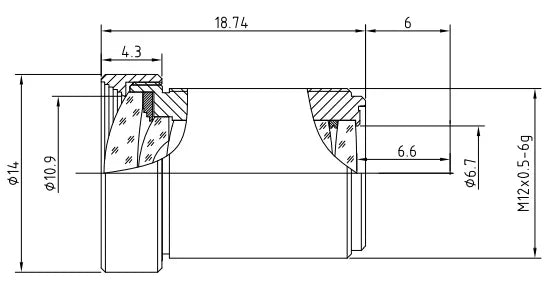

| Size (mm) | dia. 14 x 18.74 |
|---|---|
| Mount | M12 |
| Weight | 15 g |
Other models in the M12 board lens, S mount (LS-MBL-S01) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0008 | 5.5 mm, 1/1.8", M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0005 | 4 mm, 1/1.8", M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0001 | 25 mm, 1/2", M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0002 | 35 mm, 1/2", M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0003 | 50 mm, 1/2", M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0006 | 14 mm, 1/1.7", M12-mount | $79.00 | Ships in 2-3 weeks | View |
| LS-MBL-0007 | 22 mm, 1/1.8", M12-mount | $79.00 | Ships in 2-3 weeks | View |
