M12 board lenses
M12 board lens, S mount, 35 mm, 1/2", M12-mount (LS-MBL-0002)
Model LS-MBL-0002
- Focal length35mm
- MountM12
- Sensor1/2"
- ApertureF2.5
- Resolution5MP
- Field of viewD 13.1° / H 11° / V 7.8°
$59.00
Ships in 2-3 weeks
0.13 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
M12 board lenses for industrial FA machine vision, face recognition, video conferencing and scanners (S mount).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0002 |
|---|---|
| Format | 1/2" |
| F No. | 2.5 |
| BFL (mm) | 7.3 |
| MOD | 0.4m |
| FOV D (deg) | 13.1 |
| FOV H (deg) | 11 |
| FOV V (deg) | 7.8 |
| IR correction | IR corrected (day/night) |
Optics
| Focal length | 35mm |
|---|---|
| Distortion | 0.45% |
| TTL (mm) | 40.7 |
| Aperture | F2.5 |
| Field of view | D 13.1° / H 11° / V 7.8° |
Sensor and imaging
| Resolution | 5MP |
|---|---|
| Sensor format | 1/2" |

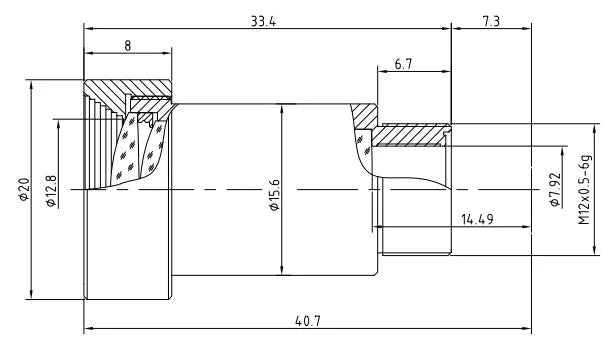

Mechanical
| Size (mm) | dia. 20 x 33.4 |
|---|---|
| Mount | M12 |
| Weight | 15 g |
Photo shows a representative model of this series; see the specifications for this model.
Other models in the M12 board lens, S mount (LS-MBL-S01) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBL-0008 | 5.5 mm, 1/1.8", M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0005 | 4 mm, 1/1.8", M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0001 | 25 mm, 1/2", M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0003 | 50 mm, 1/2", M12-mount | $59.00 | Ships in 2-3 weeks | View |
| LS-MBL-0006 | 14 mm, 1/1.7", M12-mount | $79.00 | Ships in 2-3 weeks | View |
| LS-MBL-0007 | 22 mm, 1/1.8", M12-mount | $79.00 | Ships in 2-3 weeks | View |
| LS-MBL-0004 | 5.4 mm, 1/2.3", M12-mount | $79.00 | Ships in 2-3 weeks | View |
