Line scan lights

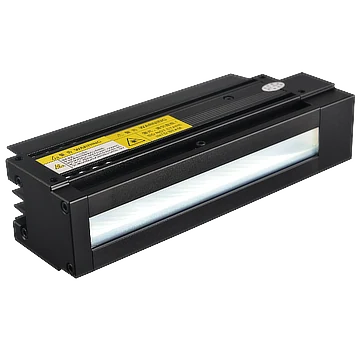

Line Scan Light, 638 mm, White (LS-LTDS-600-W)

Model LS-LTDS-600-W

ColourWhite
Emitting area600 mm × 17 mm
Size638 mm × 45 mm × 49.8 mm
Power92.2 W

$1,219.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Line Scan Light, 638 mm, White. One-piece aluminum alloy housing for good heat dissipation Added diffuser film for good uniformity

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LTDS-600-W

Interfaces and I/O

Connector type	20M-4J
Cable length	500 mm

Light

Color	White
Color temperature	6000~7000K
LED rows	1
Emitting area dimension	600 mm × 17 mm
Diffuse plate included	Included

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% to 85% RH (non-condensing)

Electrical

Power	92.2 W

Mechanical

Dimension	638 mm × 45 mm × 49.8 mm
Shipping weight (estimated)	0.66 kg

Other models in the Classic line lights series

See all 10 models

Model	Size / key data	Price	Availability	Link
LS-LTDS-150-W	188 mm, White	$369.00	3 in stock	View
LS-LTDS-300-W	338 mm, White	$659.00	3 in stock	View
LS-LTDS-450-W	488 mm, White	$939.00	5 in stock	View
LS-LTDS-750-W	788 mm, White	$1,509.00	3 in stock	View
LS-LTDS-750-DW	788 mm	$1,509.00	5 in stock	View
LS-LTDS-1200-W	1256 mm, White	$2,359.00	3 in stock	View
LS-LTDS-1350-W	1406 mm, White	$2,639.00 Quote	Ships in 2-3 weeks	View
LS-LTDS-1500-W	1556 mm, White	$2,919.00 Quote	Ships in 2-3 weeks	View
LS-LTDS-1800-W	1856 mm, White	$3,489.00 Quote	Ships in 2-3 weeks	View
