Line scan lights

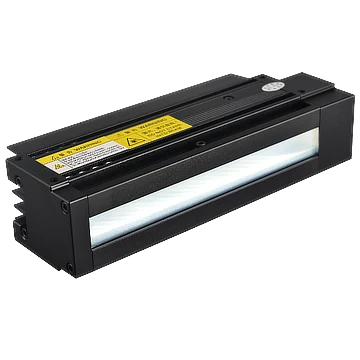

Line Scan Light, 1406 mm, White (LS-LTDS-1350-W)
Model LS-LTDS-1350-W
- ColourWhite
- Emitting area1350 mm × 17 mm
- Size1406 mm × 45 mm × 49.8 mm
- Power207.4 W
$2,639.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.66 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Line Scan Light, 1406 mm, White. One-piece aluminum alloy housing for good heat dissipation Added diffuser film for good uniformity
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LTDS-1350-W |
|---|
Interfaces and I/O
| Connector type | 20M-4J |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| LED rows | 1 |
| Emitting area dimension | 1350 mm × 17 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 207.4 W |
|---|
Mechanical
| Dimension | 1406 mm × 45 mm × 49.8 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic line lights series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LTDS-150-W | 188 mm, White | $369.00 | 3 in stock | View |
| LS-LTDS-300-W | 338 mm, White | $659.00 | 3 in stock | View |
| LS-LTDS-450-W | 488 mm, White | $939.00 | 5 in stock | View |
| LS-LTDS-600-W | 638 mm, White | $1,219.00 | 5 in stock | View |
| LS-LTDS-750-W | 788 mm, White | $1,509.00 | 3 in stock | View |
| LS-LTDS-750-DW | 788 mm | $1,509.00 | 5 in stock | View |
| LS-LTDS-1200-W | 1256 mm, White | $2,359.00 | 3 in stock | View |
| LS-LTDS-1500-W | 1556 mm, White | $2,919.00 Quote | Ships in 2-3 weeks | View |
| LS-LTDS-1800-W | 1856 mm, White | $3,489.00 Quote | Ships in 2-3 weeks | View |
