Line scan lenses

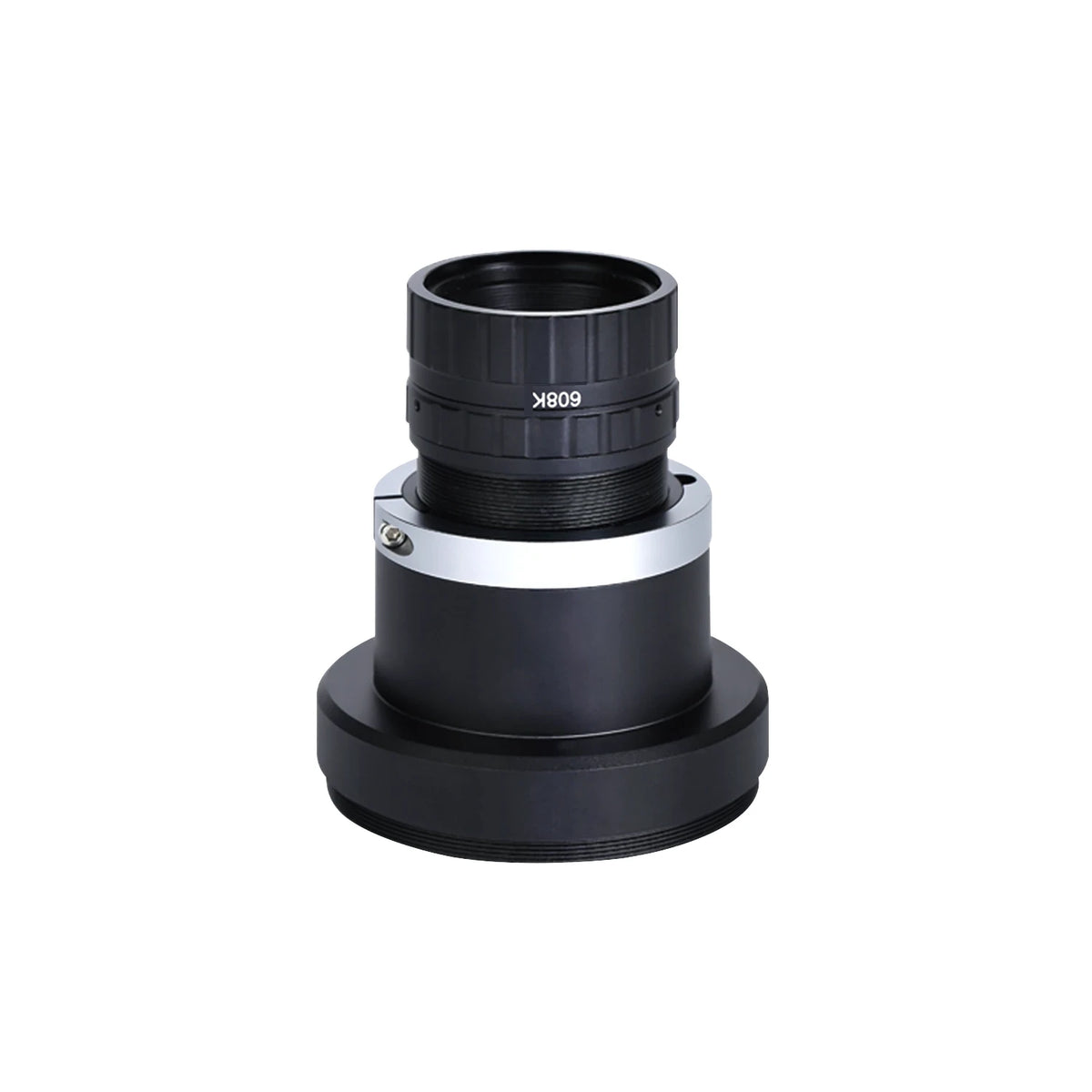

Line scan lens, 60 mm, M42/M58/M72-mount (LS-LSL-0148)
Model LS-LSL-0148
- Focal length60mm
- Magnification0.05x~0.15x
- MountM42
- SensorLarge format
- Working distance440mm-1250mm
- Aperture4 ~ 22
$2,969.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Manual focus 4K line scan lens is suitable for professional machine vision imaging,inspection of ultra-long/large size workpieces and other defect detection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0148 |
|---|---|
| F/NO | 4 ~ 22 |
| WD | 440-1250mm |
| Type | Line Scan Lens |
| Relative lllumination(%) | >75 |
| Transmission | 400~700nm |
Optics
| Focal length | 60mm |
|---|---|
| Image circle | 60mm |
| Magnification | 0.05x~0.15x |
| Working distance | 440mm-1250mm |
| Distortion (%) | <0.02 |
| Aperture | 4 ~ 22 |
Sensor and imaging
| Resolution | 8K7μ |
|---|
Environment and compliance
| Temperature range | —20℃~+60℃ |
|---|
Mechanical
| Mount | M42/M58/M72 |
|---|---|
| Shipping weight | 0.94 kg |
