Line scan lenses

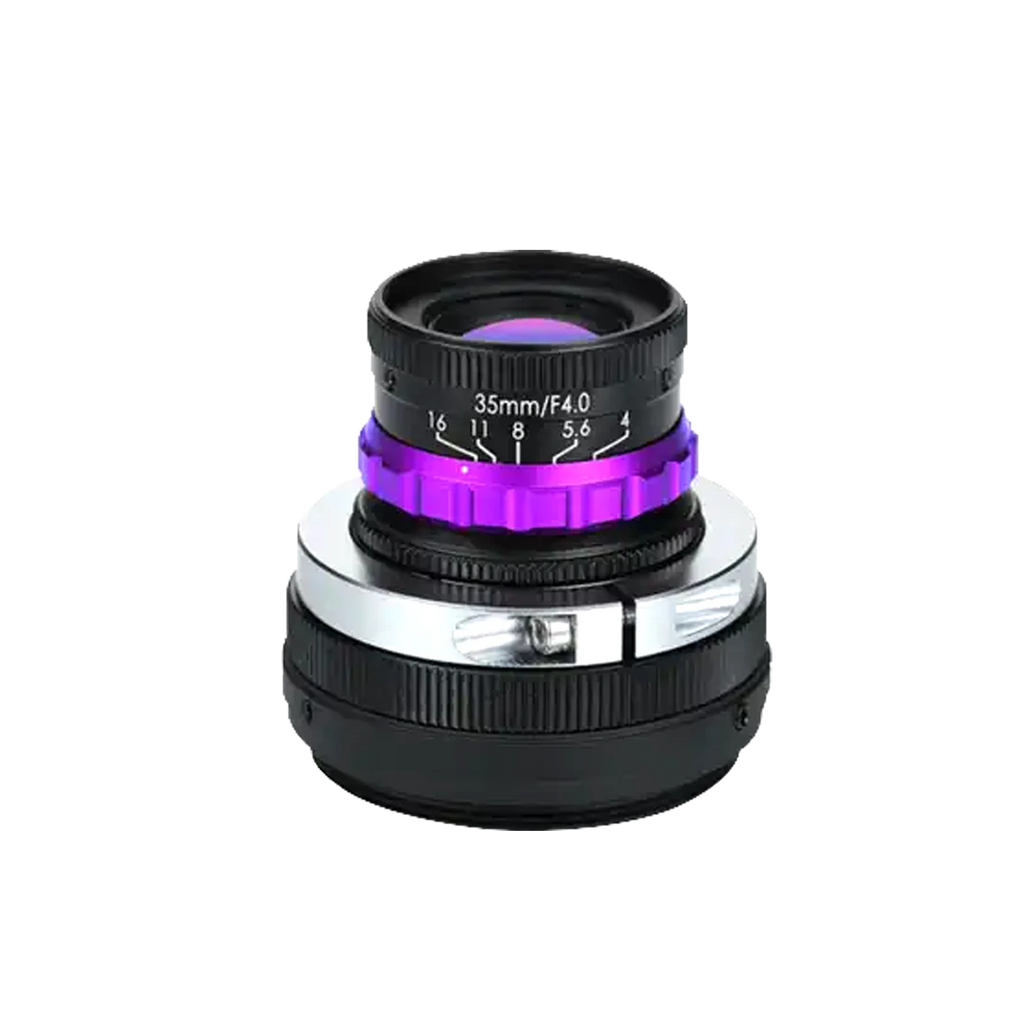

Line scan lens, 35 mm, M42/M58-mount (LS-LSL-0143)
Model LS-LSL-0143
- Focal length35mm
- Magnification0.01x~0.5x
- MountM42
- Sensor1.75"
- Working distance88mm-3518mm
- Aperture4 ~ 16
$2,859.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Manual focus 4K line scan lens is suitable for professional machine vision imaging,inspection of ultra-long/large size workpieces and other defect detection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0143 |
|---|---|
| F/NO | 4 ~ 16 |
| WD | 88-3518mm |
| Type | Line Scan Lens |
| Relative lllumination(%) | >75 |
Optics
| Focal length | 35mm |
|---|---|
| Image circle | 28mm |
| Magnification | 0.01x~0.5x |
| Working distance | 88mm-3518mm |
| Distortion (%) | <0.02 |
| Aperture | 4 ~ 16 |
Sensor and imaging
| Resolution | 4K7μ |
|---|
Environment and compliance
| Temperature range | —20℃~+60℃ |
|---|

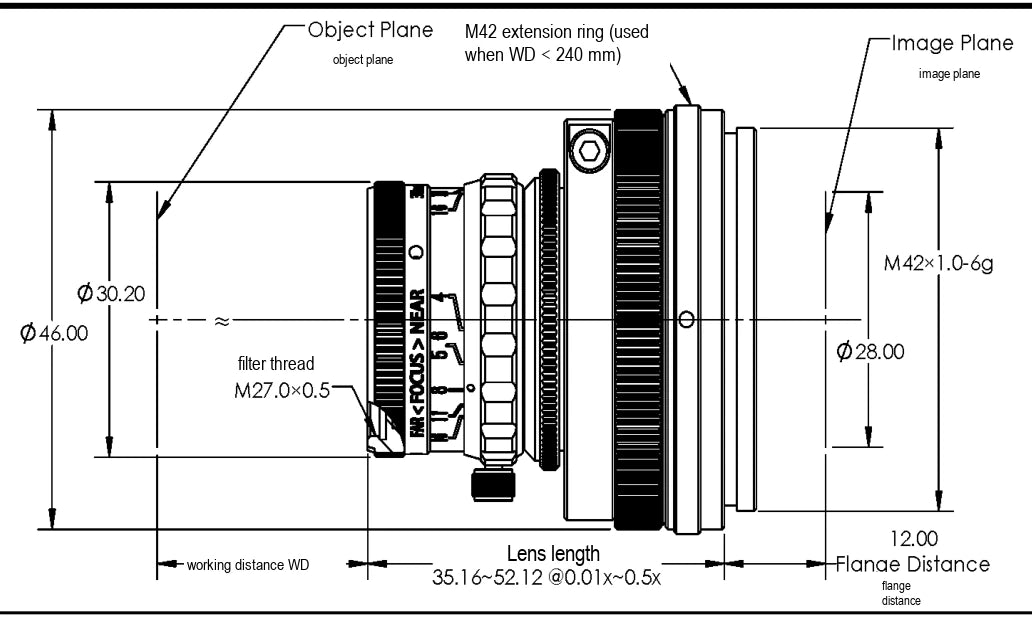

Mechanical
| Mount | M42/M58 |
|---|---|
| Mount | M42xP1.0-6g |
| Shipping weight | 0.94 kg |
