16K 3.5µ line scan lens, 116 mm, V-Mount, working distance 339.74 mm (LS-LS1642A)

Model LS-LS1642A

Focal length116mm
Magnification0.05X-1X
MountV-mount
SensorLarge format
Working distance339.74 mm
ApertureF3.8-16

$2,369.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Line scan lenses specially designed for 16K 3.5 µm super-high-resolution line scan cameras; real lens resolution up to 160 lp/mm, max image circle up to 66 mm, compatible with 12K 5 µ cameras, optical distortion <1 pixel, big aperture F3.8.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LS1642A
Line scan format	16K 3.5µ
EFL	116mm
F/NO	3.8-16
Conjugate distance	530.1
Flange distance	144.5

Optics

Focal length	116mm
Magnification range	0.05X-1X
Distortion	<0.005%
Standard magnification	0.42X
Image size (dia.)	dia. 66
Optical distortion	0.007%
Working distance	339.74
Focal length (mm)	116
Aperture	F3.8-16

Sensor and imaging

Central resolution	200lp/mm
Sensor format	dia. 66 mm image circle

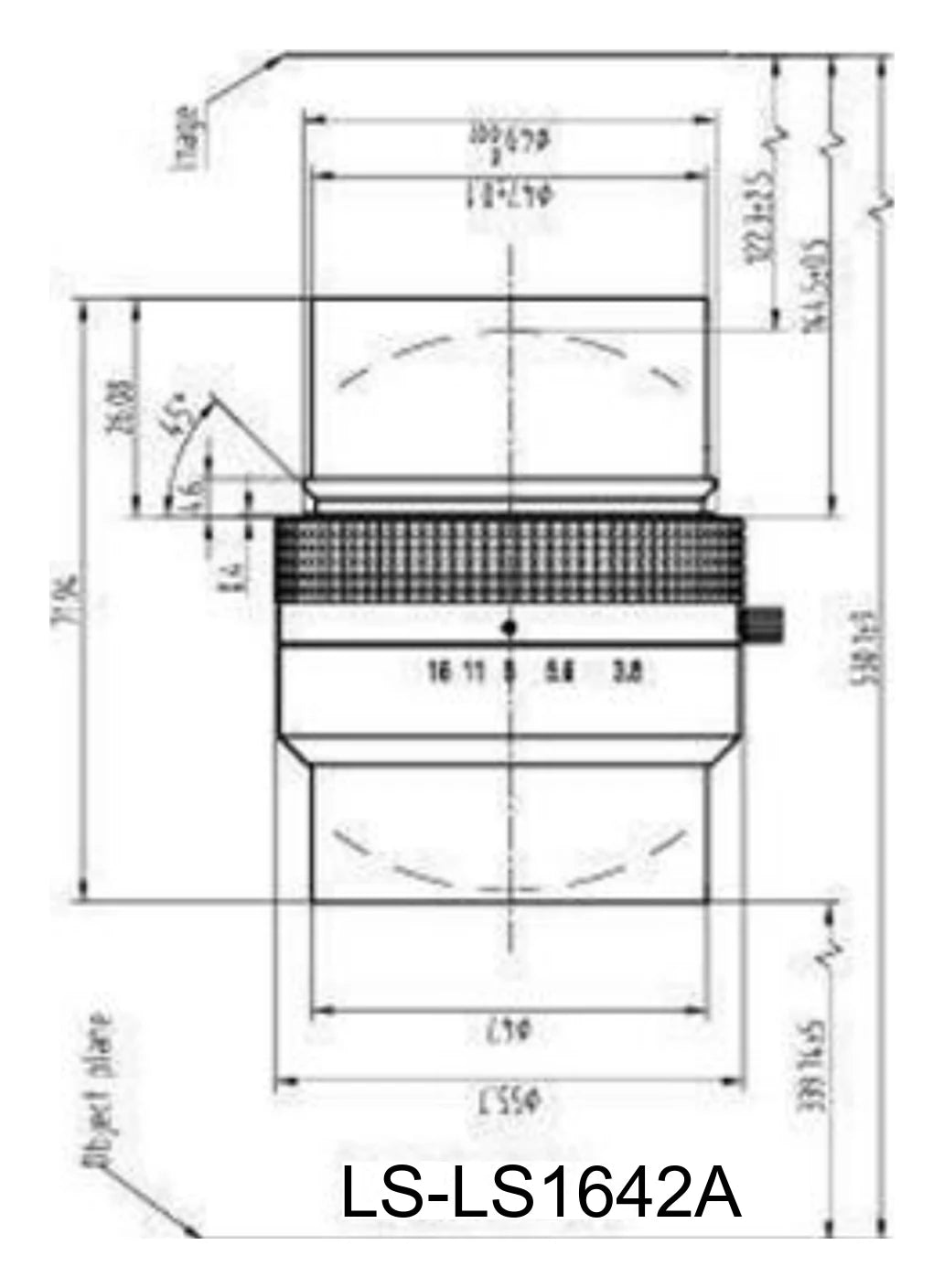

Mechanical

Mount	V-Mount
Shipping weight	0.94 kg

Downloads

Datasheet (PDF)LS-LS1642A · 1.3 MB

Features

Specially designed for 16K3.5µ super high resolution line scan camera
Lens real resolution is up to 160lp/mm
Max image circle is up to 66mm
Compatible with 12k5µ camera
Optical distortion is <1 pixel size
Big aperture design Fno. 3.8

Applications

Industrial: height - detecting metal markings
Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
Electronic component: blemish / stain - detecting camera defects
Electronic equipment: yes or no / identify - detect poorly bundled / broken lead wires of motors
