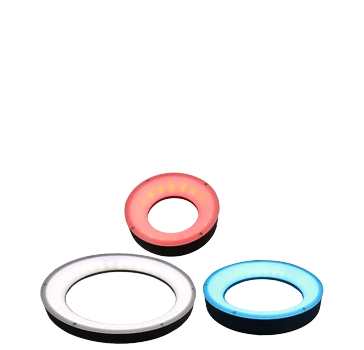

Ring Light, 196 mm dia., White (LS-LRSS-196-W)

Model LS-LRSS-196-W

ColourWhite
Emitting areaΦ180 mm
SizeΦ196 mm × 25.5 mm
Power21 W

$289.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Ring Light, 196 mm dia., White. Wide-angle SMD LEDs for high uniformity Available in custom single-color and multi-color versions

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LRSS-196-W

Interfaces and I/O

Connector type	SMR-03V-B
Cable length	500 mm

Light

Color	White
Color temperature	6000 ~ 7000K
LED rows	1
Emitting area length	Φ180 mm
Diffuse plate included	Included

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% to 85% RH (non-condensing)

Electrical

Power	21 W
Supply voltage (derived)	24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Dimension	Φ196 mm × 25.5 mm
Outer dimension	Φ196 mm
Bore dimension	Φ146 mm
Shipping weight (estimated)	0.66 kg
