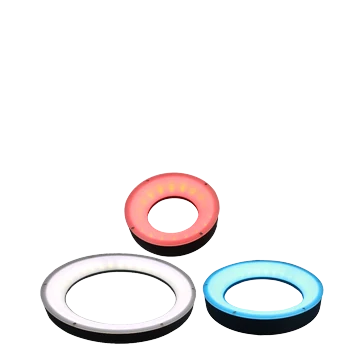

Ring Light, 116 mm dia., Blue (LS-LRSS-116-B)
Model LS-LRSS-116-B
- ColourBlue
- Emitting areaΦ100 mm
- SizeΦ116 × 25.5 mm
- Power11.8 W
- Wavelength425 nm
$179.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Ring Light, 116 mm dia., Blue. Wide-angle SMD LEDs for high uniformity Available in custom single-color and multi-color versions
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LRSS-116-B |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | Blue |
|---|---|
| Wavelength | 425 nm |
| LED rows | 1 |
| Emitting area length | Φ100 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 11.8 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | Φ116 × 25.5 mm |
|---|---|
| Outer dimension | Φ116 mm |
| Bore dimension | Φ66 mm |
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic ring lights series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LRSS-80-W | 80 mm dia., White | $139.00 | 5 in stock | View |
| LS-LRSS-80-R | 80 mm dia., Red | $139.00 | 5 in stock | View |
| LS-LRSS-116-W | 116 mm dia., White | $179.00 | 4 in stock | View |
| LS-LRSS-116-R | 116 mm dia., Red | $179.00 | 3 in stock | View |
| LS-LRSS-196-W | 196 mm dia., White | $289.00 | 3 in stock | View |
