Bar lights

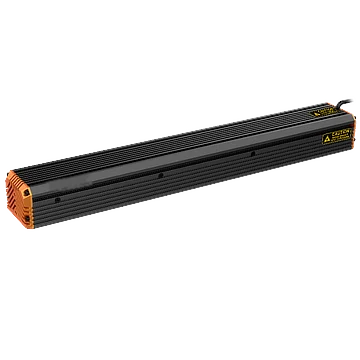

Bar Light, 100 x 40 mm, IR 850 nm (LS-LLDS-H-100-40-IR850)
Model LS-LLDS-H-100-40-IR850
- ColourInfrared
- Emitting area96 mm × 31.6 mm
- Size108 mm × 40 mm × 30 mm
- Voltage24 VDC
- Power8.4 W
- Wavelength850 nm
$89.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.42 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bar Light, 100 x 40 mm, IR 850 nm. The irradiation direction and angle can be adjusted freely. Support multi-side installation.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LLDS-H-100-40-IR850 |
|---|---|
| Safety class | No danger |
| Cooling mode | Natural cooling |
Optics
| Best working distance | 30 mm to 500 mm |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 1 m |
Light
| Color | IR850 |
|---|---|
| Center illuminance/irradiance | ≥ 4300 μW/cm2@100 mm |
| Wavelength | 850 nm |
| Color temperature | W: 6000K to 7500K |
| Emitting area dimension | 96 mm × 31.6 mm |
| LED rows | 6 |
| Diffuse plate included | PMMA |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 8.4 W |
|---|---|
| Input voltage | 24 VDC |
Mechanical
| Dimension | 108 mm × 40 mm × 30 mm |
|---|---|
| Weight | 0.23 kg |
| Shipping weight (estimated) | 0.42 kg |
