Spot lights

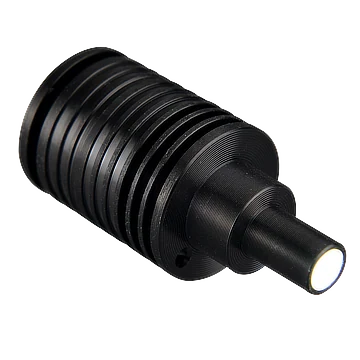

Spot Light, 24 mm dia., White (LS-LDSS-8-3-W)
Model LS-LDSS-8-3-W
- ColourWhite
- Emitting areaΦ6 mm
- SizeΦ24 mm × 59 mm
- Power2.5 W
$209.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Spot Light, 24 mm dia., White. High-power LEDs for high brightness One-piece aluminum alloy body for efficient heat dissipation
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LDSS-8-3-W |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000 ~ 7000K |
| Emitting area outer diameter | Φ6 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 2.5 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | Φ24 mm × 59 mm |
|---|---|
| Outer dimension | Φ24 mm |
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic spot lights series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LDSS-8-3-UV365 | 24 mm dia., UV 365 nm | $209.00 | 3 in stock | View |
| LS-LDSS-8-3-IR850 | 24 mm dia., IR 850 nm | $209.00 | 2 in stock | View |
| LS-LDSS-8-3-R | 24 mm dia., Red | $209.00 | 3 in stock | View |
| LS-LDSS-8-3-B | 24 mm dia., Blue | $209.00 | 2 in stock | View |
| LS-LDSS-30-5-B | 30 mm dia., Blue | $239.00 | 4 in stock | View |
| LS-LDSS-30-5-IR740 | 30 mm dia., IR 740 nm | $239.00 | 3 in stock | View |
