Spot lights

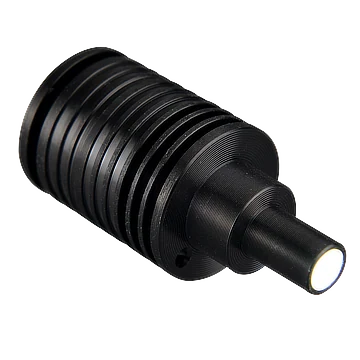

Classic spot lights
- 7 models
- from $209.00
- Series LS-LDSS-C
The Classic spot lights is a range of 7 spot lights from LumaSpec Vision, from $209.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 24 mm dia., Blue, 24 mm dia., IR 850 nm, 24 mm dia., Red, 24 mm dia., UV 365 nm, 24 mm dia., White, 30 mm dia., Blue, 30 mm dia., IR 740 nm
- Voltage
- 24 V
- Colour
- Red, Blue, White, Infrared, UV
- Wavelength
- 365 nm, 740 nm, 850 nm
Features
- High-power LEDs for high brightness
- One-piece aluminum alloy body for efficient heat dissipation
- Compatible with mainstream telecentric lenses; custom non-standard sizes available
All 7 models in the Classic spot lights
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LDSS-8-3-UV365 | 24 mm dia., UV 365 nm | Φ6 mm | 365 nm | UV | $209.00 | View |
| LS-LDSS-8-3-IR850 | 24 mm dia., IR 850 nm | Φ6 mm | 850 nm | Infrared | $209.00 | View |
| LS-LDSS-8-3-R | 24 mm dia., Red | Φ6 mm | 625 nm | Red | $209.00 | View |
| LS-LDSS-8-3-W | 24 mm dia., White | Φ6 mm | White | $209.00 | View | |
| LS-LDSS-8-3-B | 24 mm dia., Blue | Φ6 mm | 465 nm | Blue | $209.00 | View |
| LS-LDSS-30-5-B | 30 mm dia., Blue | Φ25 mm | 465 nm | Blue | $239.00 | View |
| LS-LDSS-30-5-IR740 | 30 mm dia., IR 740 nm | Φ25 mm | 740 nm | Infrared | $239.00 | View |
