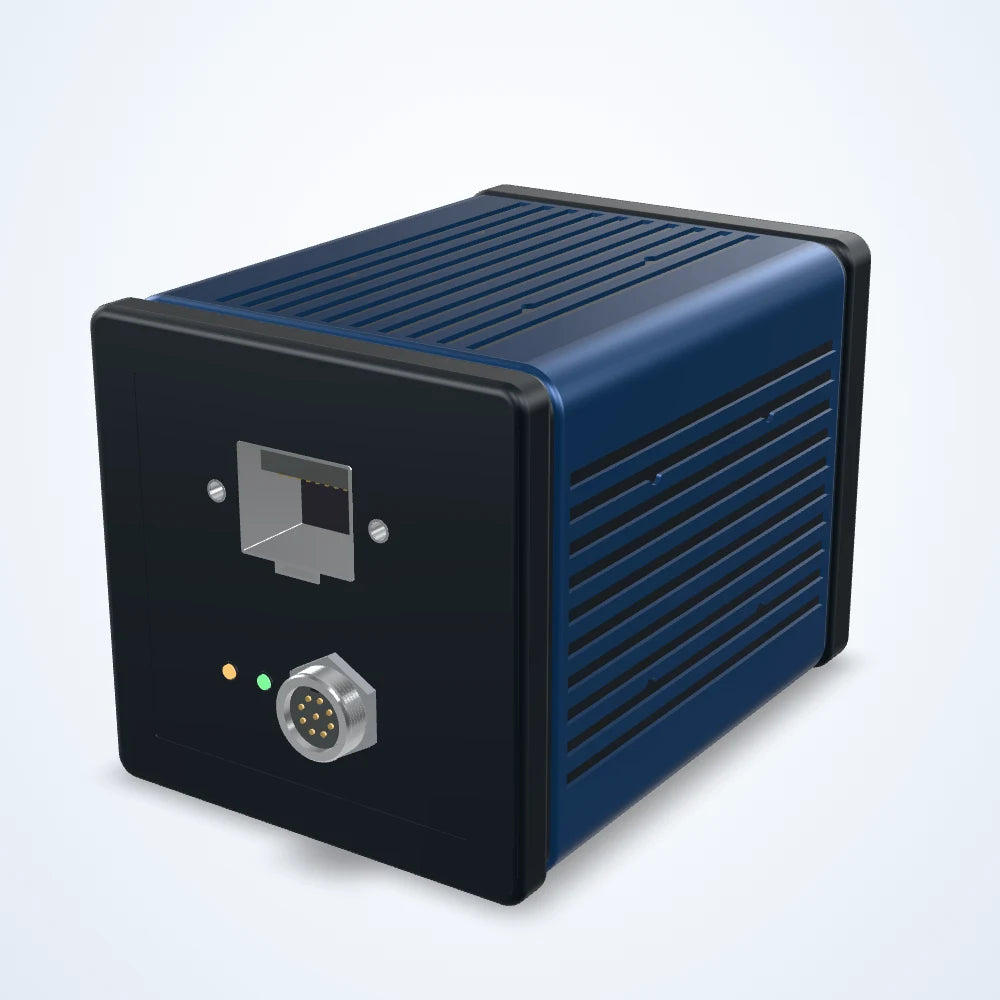

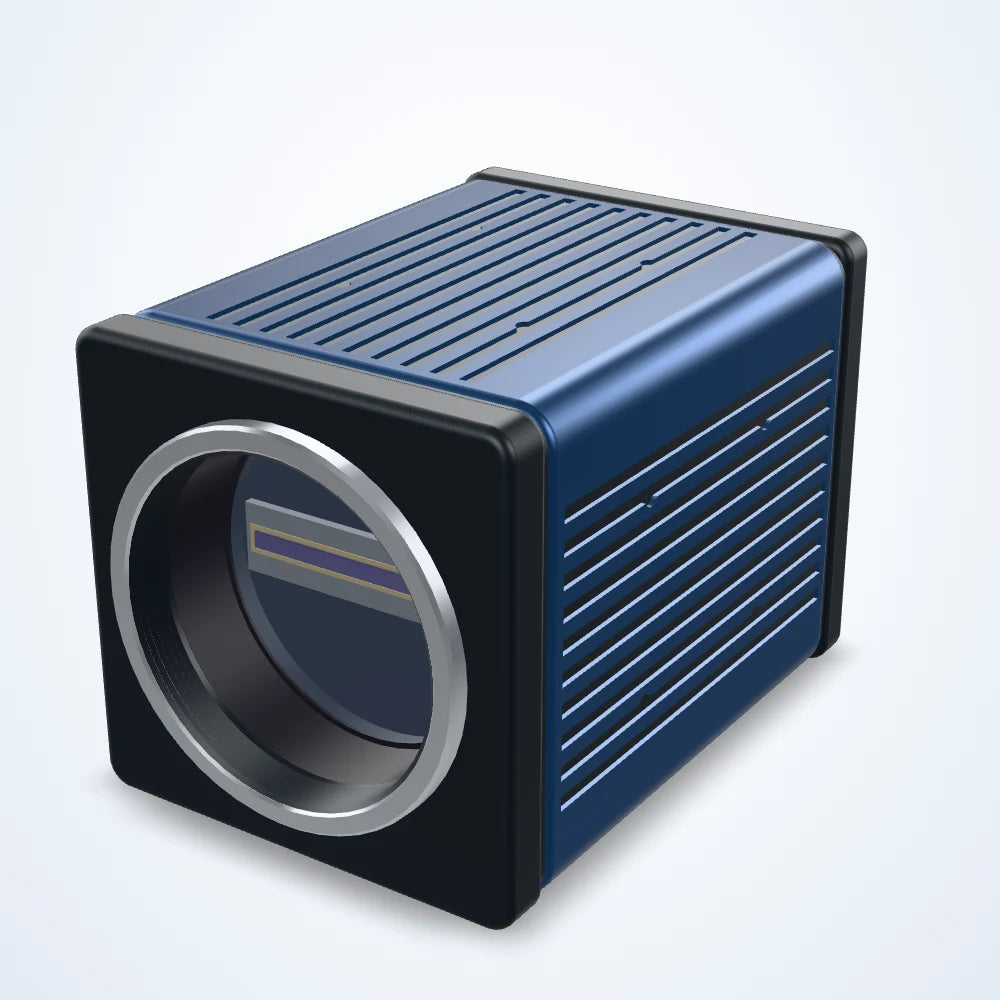

Rendered illustration: the actual product may differ in appearance.
Line scan cameras
2K SWIR GigE line scan camera, 12.5 μm, 40 kHz, M42 (LS-LCM-0041)
Model LS-LCM-0041
- Resolution2048*1
- InterfaceGigE
- Speed40 kHz
- Lens mountM42
- Pixel size12.5 μm
$5,800.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line scan camera for continuous web, roll and conveyor inspection. 2048 x 1 pixels of 12.5 μm; line rate up to 40 kHz; GigE interface; M42 lens mount; spectral range 950-1700 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0041 |
|---|---|
| Spectral range | 950-1700 nm |
| Data Rate | 124 MB/s |
| Cooling | 12°C below ambient temperature |
Sensor and imaging
| Resolution | 2048*1 |
|---|---|
| Max. line rate | 40 kHz |
| Sensor model | InGaAs (12.8 mm) |
| Pixel size | 12.5 μm |
| Pixel bit depth | 8/10/10p/12/12p/14 bit |
| Dynamic range | ≥ 65 dB |
| Exposure time | 0.1 μs- 19987 μs |
| Line rate (modes) | 40 kHz |
Interfaces and I/O
| Data interface | GigE |
|---|
Environment and compliance
| Operating temperature | 0-55 °C(Working), -10-75 °C (Storage) |
|---|
Electrical
| Trigger mode | Internal Free Run / Line Trigger Control / Frame Trigger Control |
|---|---|
| Power supply | DC12-24 V(±10%) 1.5A |
Mechanical
| Dimensions | 60*60*82.8 mm |
|---|---|
| Lens mount | M42*1 |
| Shipping weight | 2.00 kg |
