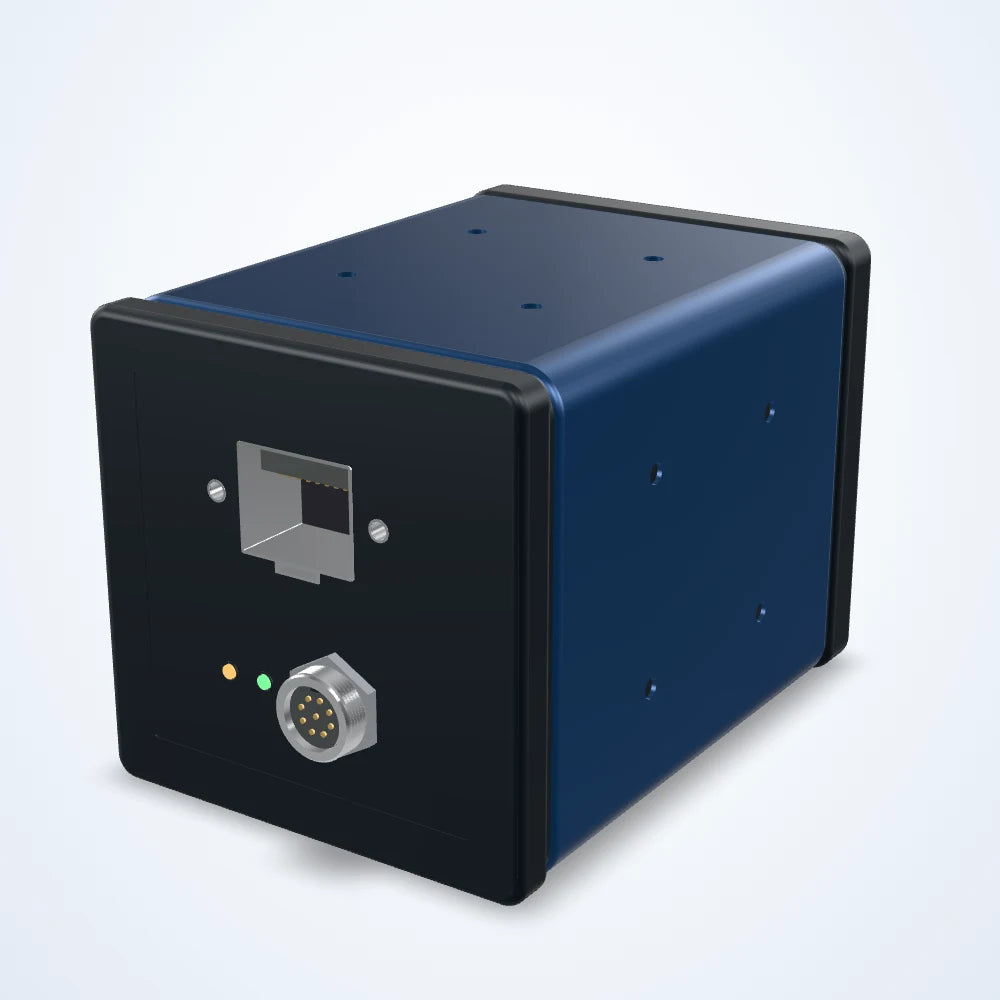

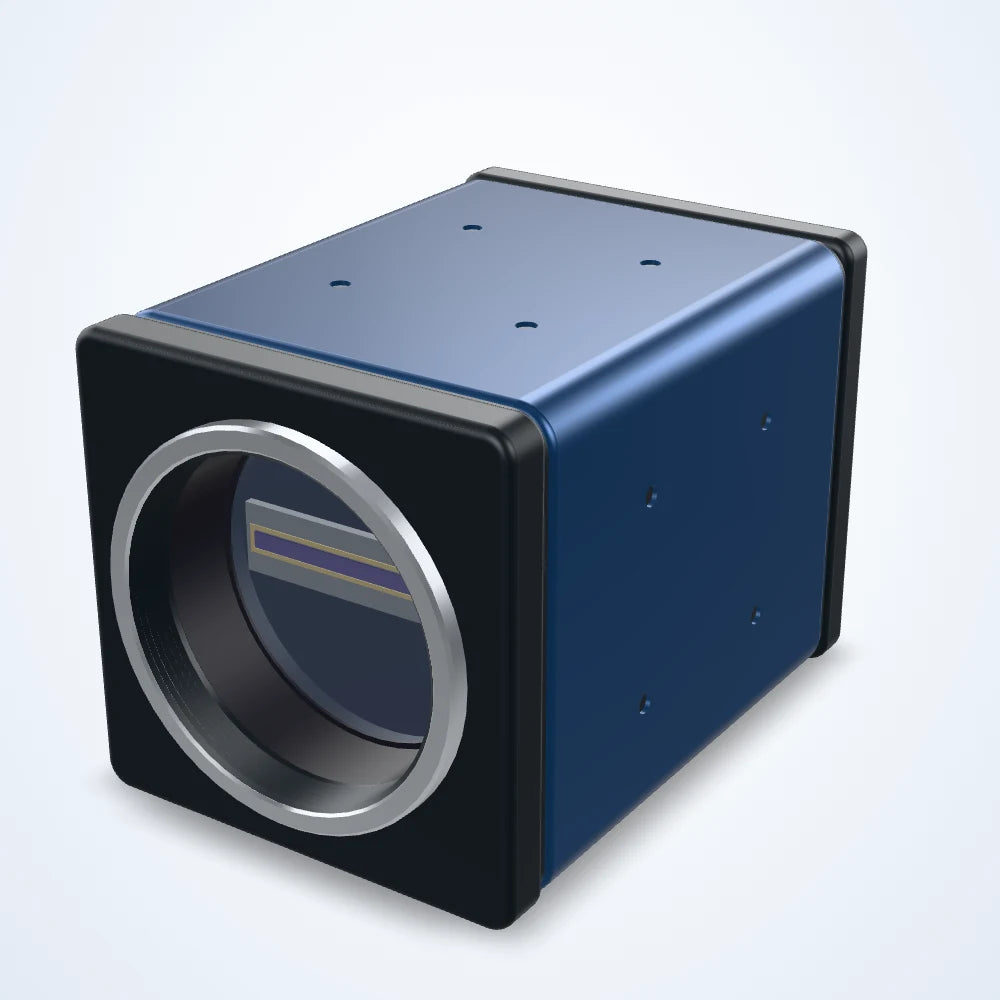

Rendered illustration: the actual product may differ in appearance.
Line scan cameras
2K SWIR GigE line scan camera, 12.5 μm, 40 kHz, M42, 2048x1 GigE (LS-LCM-0042)
Model LS-LCM-0042
- Resolution2048 x 1
- SensorInGaAs
- InterfaceGigE
- Speed40 kHz
- Lens mountM42
- Pixel size12.5 μm
$5,780.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line scan camera for continuous web, roll and conveyor inspection. 2048 x 1 pixels of 12.5 μm; line rate up to 40 kHz; GigE interface; M42 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0042 |
|---|---|
| Spectral Band | 0.95~1.7 μm |
| Cooling | TEC Cooling |
Sensor and imaging
| Max. line rate | 40 kHz |
|---|---|
| Line rate (modes) | 40 kHz |
| Pixel size | 12.5 μm |
| Resolution | 2048 x 1 |
| Sensor type | InGaAs |
| Max. frame rate | 40.0 kHz@8/10p/12pbit, 30.3 kHz@10/12/14 bit |
| Sensor size | 12.8 mm |
| Dynamic range | ≥65.0 dB |
| Exposure time | 0.088 μs - 19.98 ms |
| Pixel bit depth | 8/10/12/14 bit |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | ● Soft Trigger ● Hardware Trigger ● Free Run |
| Power Connector | DB15(Female) |
Light
| Color Type | Mono |
|---|
Environment and compliance
| Operating temperature | 0 °C~55 °C(Operating)-20~75 °C(Storage) |
|---|
Electrical
| Power supply | DC12-24 V(±10%) 1.5A |
|---|
Mechanical
| Lens mount | M42 |
|---|---|
| Weight | 307.6g |
| Dimensions | 60 mm x 60 mm x 83.4 mm |
