Telecentric lenses

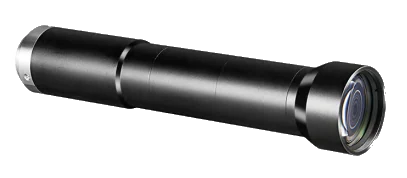

Object-Side Telecentric Lens, 3x, 110 mm WD, 1.1" (LS-KT-3-110)
Model LS-KT-3-110
- Magnification3
- MountC-mount
- Sensor1.1"
- Working distance110 mm
- ApertureF20.1
$589.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 3x, 110 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KT-3-110 |
|---|
Optics
| Magnification | 3 |
|---|---|
| Working distance | 110 mm |
| Image size | 1.1" |
| F-number | F20.1 |
| Depth of field | ±0.09 mm @F20.1 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 4.2 μm |
| Object-side telecentricity | ≤ 0.1° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

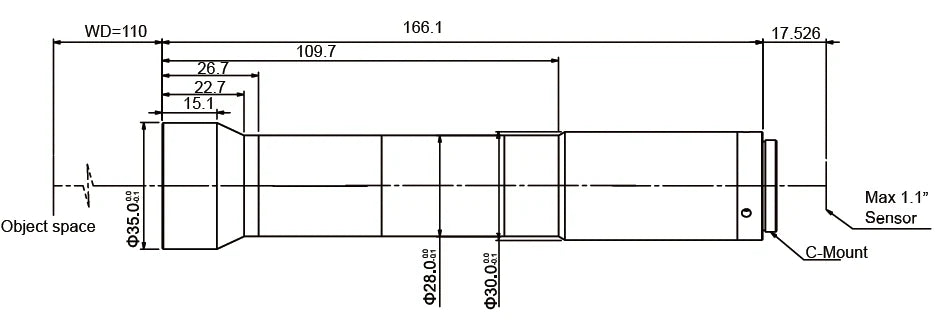

| Dimension | 166.1 mm × Φ35 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the K Series Object-Side Telecentric lenses series
See all 123 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-KT-10-108C | 10x, 108 mm WD, 1.1" | $569.00 | 2 in stock | View |
| LS-KT-8-108C | 8x, 108 mm WD, 1.1" | $579.00 | 4 in stock | View |
| LS-KT-3-110C | 3x, 110 mm WD, 1.1" | $589.00 | 4 in stock | View |
| LS-KT-6-108 | 6x, 108 mm WD, 1.1" | $589.00 | 4 in stock | View |
| LS-KT-5-102 | 5x, 102 mm WD, 1.1" | $589.00 | 5 in stock | View |
| LS-KT-4-108 | 4x, 108 mm WD, 1.1" | $599.00 | 2 in stock | View |
| LS-KT-4-108C | 4x, 108 mm WD, 1.1" | $599.00 | 2 in stock | View |
| LS-KT-4-100C | 4x, 100 mm WD, 1.1" | $599.00 | 3 in stock | View |
| LS-KT-4-100 | 4x, 100 mm WD, 1.1" | $599.00 | 2 in stock | View |
| LS-KT-2-110 | 2x, 110 mm WD, 1.1" | $609.00 | 4 in stock | View |
| LS-KT-2-110C | 2x, 110 mm WD, 1.1" | $609.00 | 2 in stock | View |
| LS-KT-15-110 | 1.5x, 110 mm WD, 1.1" | $629.00 | 5 in stock | View |
| LS-KT-25-100 | 2.5x, 100 mm WD, 1.1" | $629.00 | 5 in stock | View |
| LS-KY-2-210C | 2x, 210 mm WD, 1" | $649.00 | 5 in stock | View |
| LS-KY-2-210 | 2x, 210 mm WD, 1" | $649.00 | 4 in stock | View |
| LS-KS-1-221 | 1x, 221 mm WD, 1.1" | $659.00 | 4 in stock | View |
| LS-KY-1-370 | 1x, 370 mm WD, 1.1" | $689.00 | 3 in stock | View |
| LS-KT-1-180C | 1x, 180 mm WD, 1.1" | $689.00 | 4 in stock | View |
| LS-KS-1-375 | 1x, 375 mm WD, 1.1" | $689.00 | 3 in stock | View |
| LS-KS-08-421 | 0.8x, 421 mm WD, 1.1" | $689.00 | 3 in stock | View |
| LS-KT-12-102 | 1.2x, 102 mm WD, 1.1" | $709.00 | 5 in stock | View |
| LS-KT-13-98 | 1.3x, 98 mm WD, 1.1" | $709.00 | 4 in stock | View |
| LS-KT-1-110C-V3 | 1x, 110 mm WD, 1.1" | $739.00 | 4 in stock | View |
| LS-KT-1-110-V3 | 1x, 110 mm WD, 1.1" | $739.00 | 3 in stock | View |
