Telecentric lenses

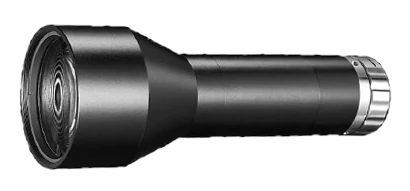

Object-Side Telecentric Lens, 0.63x, 110 mm WD, 1.1" (LS-KT-063-110)
Model LS-KT-063-110
- Magnification0.63
- MountC-mount
- Sensor1.1"
- Working distance110 mm
- ApertureF7
$969.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 0.63x, 110 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KT-063-110 |
|---|
Optics
| Magnification | 0.63 |
|---|---|
| Working distance | 110 mm |
| Image size | 1.1" |
| F-number | F7 |
| Depth of field | ±0.7 mm @F7 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 7.5 μm |
| Object-side telecentricity | ≤ 0.05° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

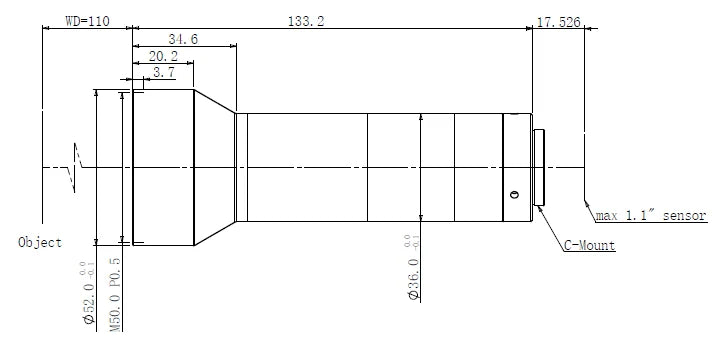

| Dimension | 133.2 mm × Φ53 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
