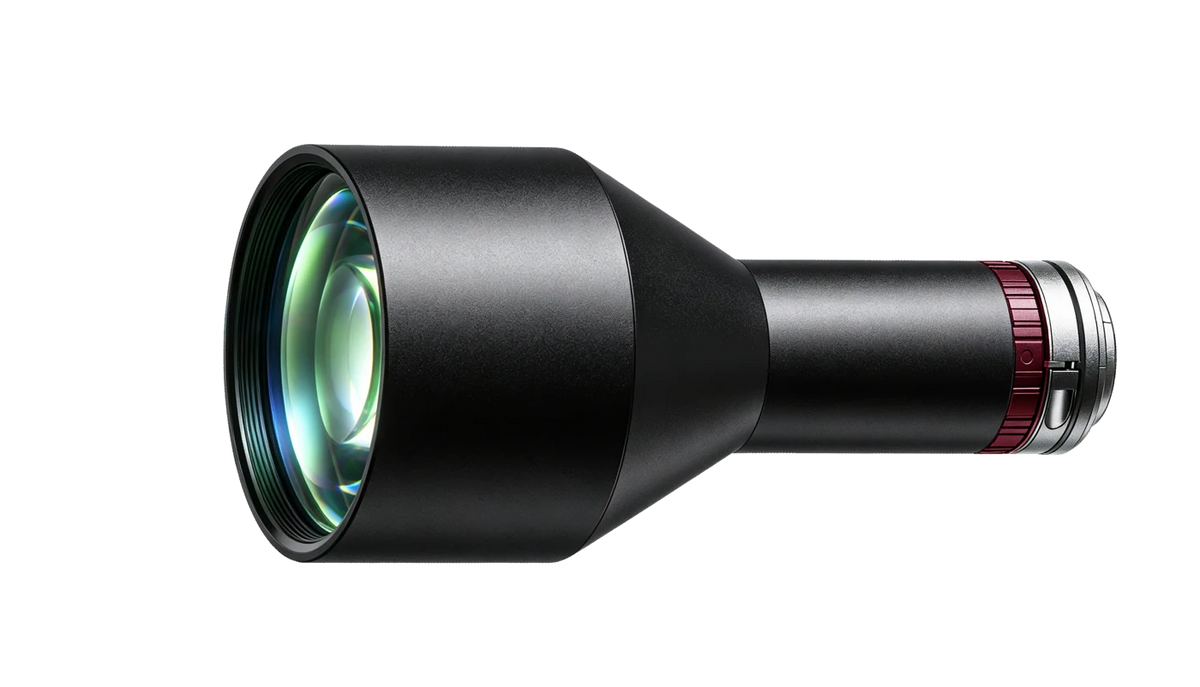

Object-Side Telecentric Lens, 0.3x, 150 mm WD, 1.1" (LS-KT-03-150)
  • Object-Side Telecentric Lens, 0.3x, 150 mm WD, 1.1" (LS-KT-03-150)

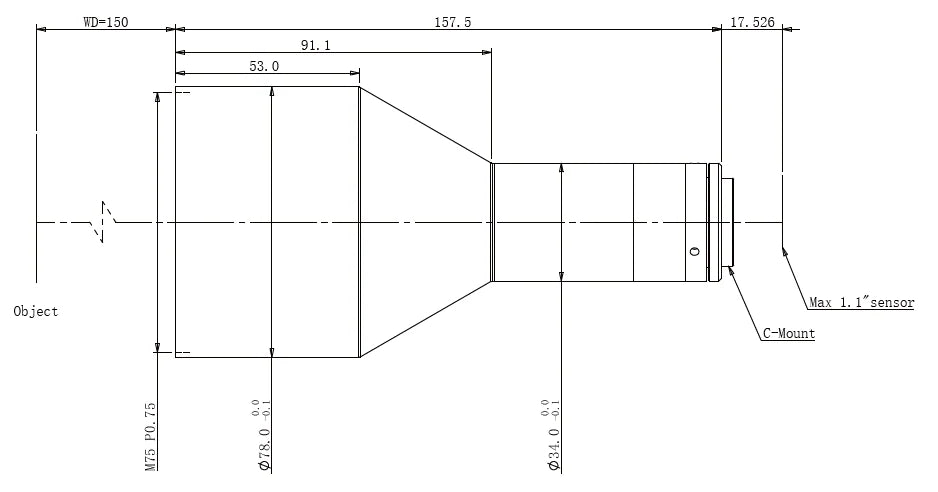

  • LS-KT-03-150 dimensions (mm)

Telecentric lenses

Object-Side Telecentric Lens, 0.3x, 150 mm WD, 1.1" (LS-KT-03-150)

Model LS-KT-03-150

  • Magnification0.3
  • MountC-mount
  • Sensor1.1"
  • Working distance150 mm
  • ApertureF6
$969.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Object-Side Telecentric Lens, 0.3x, 150 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KT-03-150

Optics

Magnification0.3
Working distance150 mm
Image size1.1"
F-numberF6
Depth of field5.34 mm
Distortion≤ 0.05%
Object-side resolution13.47 μm
Object-side telecentricity≤ 0.11°
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension157.5 mm × Φ 78 mm
Shipping weight (estimated)0.66 kg
